660m3/hr
Oerre Easy 23 AR Axial Window/Wall Fan
$429.00
RRP: $449.00
The RRP price is provided by the manufacturer.
The Oerre Easy 23 AR is a high quality exhaust fan designed for window/wall installation. The Italian made fan features a unique installation process, meaning it can be installed easily from inside the building. The model requires a hole size in diameter of between 254mm – 262mm (eg a 260mm diameter hole). Learn more about the product below.
Oerre Easy Data SheetIN STOCK – Typically dispatches in 1-2 business days
About the Oerre Easy 23 AR
Capacity: 660 m3/hr (183.33 l/s)
Motor Type: Axial
Ductable: No
The premium Oerre Easy Axial fan range is designed to make ventilation easy and versatile. Compared to other fans, Oerre fans features superior durability and robustness in its construction. Choosing Oerre means investing in a product that’s not just functional but also built to last. With an emphasis on easy installation, low energy consumption, and the option for wiring to either supply or extract airflow, Oerre fans are a smart choice for both residential and commercial spaces.
Experience the best of Italian engineering with Oerre fans.
Streamlined installation is a hallmark of the Oerre Easy Axial fan range, ensuring hassle-free setup and operation. Installed from the inside, the fan eliminates the need for outdoor installation that enhances accessibility. Learn more in the video tab.
- Innovative Design: Oerre’s patented coupling system simplifies installation from inside the building—no need for an external grille.
- Tool-Free Setup: Mount the fan quickly and easily without screws.
- Simple Maintenance: Maintain the fan without dismantling it from the glass—making upkeep hassle-free.
Key Features
- Versatile Mounting: Designed for glass, double-glass, wall, or panels up to 50 mm thick.
- Powerful Performance: Ideal for medium to large rooms, ensuring effective air circulation and ventilation.
- Vibration-Free: Equipped with slip-resistant gaskets to minimize vibrations, providing quiet operation.
- Automatic Shutter: Prevents unwanted air from entering when the fan is off, enhancing energy efficiency.
- Reversible Airflow: Fan can be wired to either supply or extract.
- Durable Motor: Long-life ball bearing motor for reliable, long-term use.
- Compliance: Meets EN 600335-2-80 safety standards.
| Manufacturer | Oerre |
|---|---|
| Manufacturers Part Number | UF70201 |
| Capacity (l/s) | 183.33 l/s |
| Capacity (m3/hr) | 0660 m3/hr |
| Motor Type | Axial |
| IP Rating | IPX4 |
| Noise Level | 41.7 dB(A) |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Warranty | OERRE: The manufacturer offers a 2 year replacement warranty. Conditions Apply. Contact your store of purchase for warranty issues. |
| Colour | White |
| Current | 0.126 |
| Location | Indoor |
| Wall Hole Size | 254mm-262mm Round |
Installation Video
With user convenience at the forefront, Oerre Easy fans offer a simplified installation process that eliminates the need for outdoor labor, ensuring a hassle-free experience. In the video, each component of the axial fan is explained. Witness the back grille seamlessly fold and slide into the cut-out, securely attaching to the wall/window with its built-in blocking system. This facilitates complete fan assembly from indoors, making it particularly advantageous for customers residing in apartments or confined spaces.

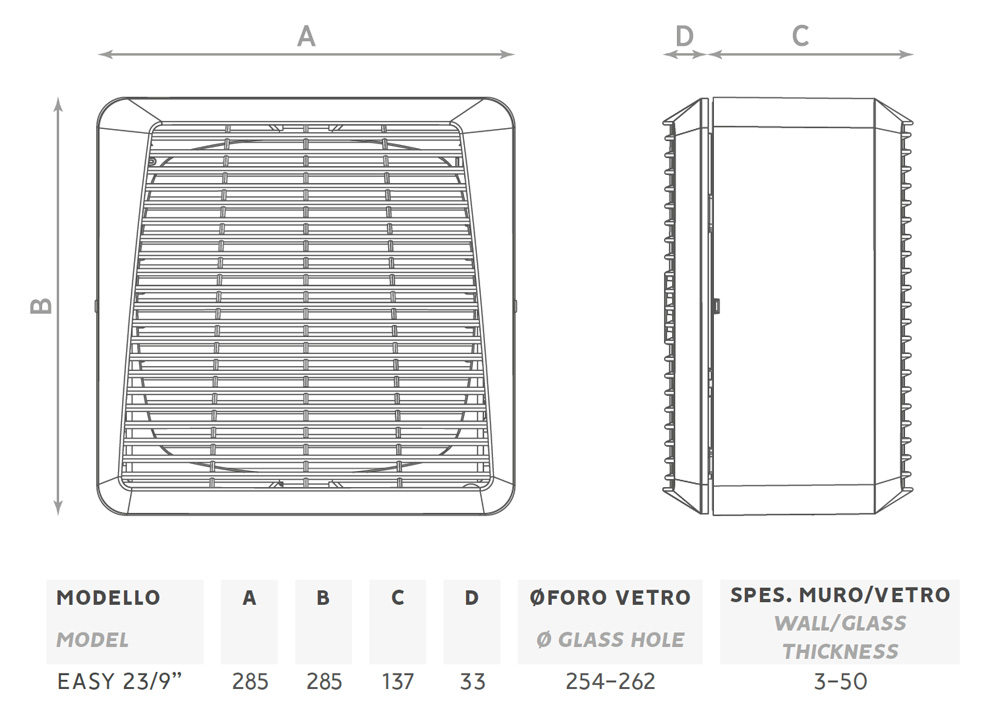

Dimensions

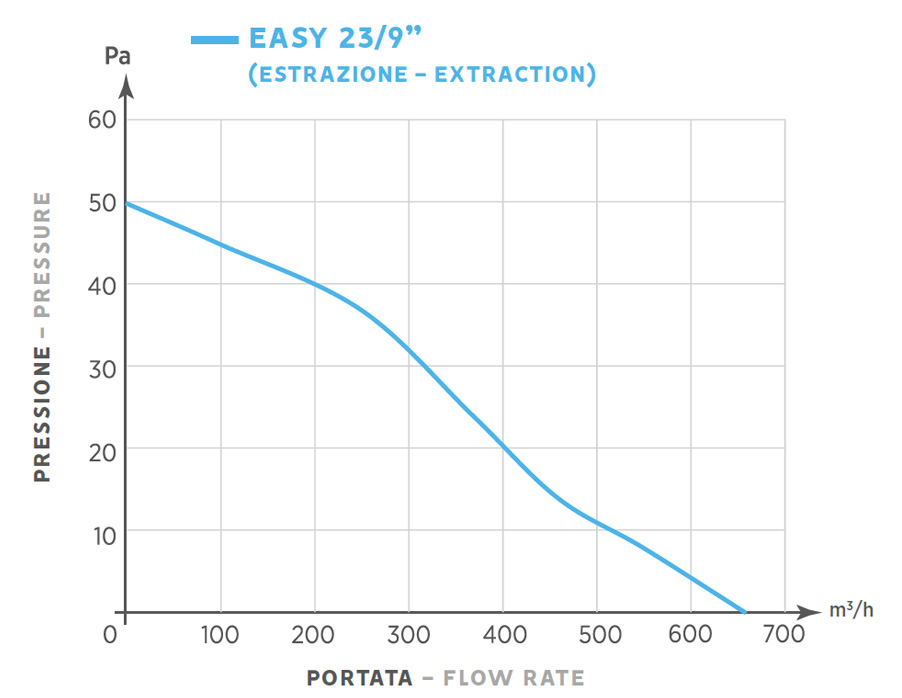

Pressure Curve
