Habitat Central

Centralised HRV System

The Premium HRV unit designed for real Australian conditions

Enquire Now

Fanco Habitat Central:

Premium Centralised HRV built for Australian conditions.

The Fanco Habitat Central is a premium whole-home heat recovery ventilation system designed to deliver fresh, filtered and pre-tempered air into every corner of your home.

Conceived for the demands of Australian residential design, it offers a level of performance and adaptability that distinguishes it from conventional systems, establishing the Habitat Central as a definitive, future-ready HRV solution for the modern home.

What makes the Fanco Habitat Central the best centralised HRV for your home?

In contemporary Australian architecture, ventilation is increasingly becoming a primary design driver rather than a peripheral service. The well-designed ventilation solutions the future demands must safeguard occupant health, protect the building fabric from condensation and mould over the long term, and support overall energy & thermal performance so that comfort is delivered with meaningfully lower energy costs.

The Fanco Habitat Central is engineered precisely for this brief.

1. Fresh Filtered Air

Whole-Home Airflow and Advanced Filtration

Feel the benefits of fresh filtered air
A constant flow of pre-tempered fresh air reaches every room, maintaining year-round comfort without draughts and supporting better breathing, calmer sinuses, and more restful sleep.
Improve the quality of your indoor air
By supplying filtered air and extracting stale, moisture-laden air, the Habitat Central reduces dust, pollen, smoke, and fine particulates — improving indoor health and easing the burden of asthma, allergies, and respiratory sensitivities.
Effective filtration
Standard G4 filters capture everyday dust, lint, and pollen, ensuring only clean air enters the home while protecting the ceramic heat-exchange core from clogging. This dual action preserves efficiency, extends system life, and supports both occupant health and architectural durability.
Additional optional filters options are available which can increase the effectiveness and scope of the filtration process.

2. Engineered for Australian Conditions

Efficient Design and Efficient Operation

High-efficiency heat recovery that saves money
By capturing up to 92% of the warmth from outgoing air and transferring it to incoming fresh air, the Habitat Central reduces reliance on heating and cooling systems, cutting energy bills without compromising comfort.
Energy-efficient EC motors
Using only 30–180 W depending on speed — comparable to one to three household light bulbs — the EC motors deliver precise airflow control at minimal running cost.
Designed for Australian conditions
Engineered for the extremes of Australia’s climate, the Habitat Central lightens the load on cooling in humid summers and preserves warmth and humidity in cold seasons. This intelligent performance improves comfort, lowers energy use, and positions the home for future efficiency standards.

3. Customisable Integration for Every Home

Tailor your HRV to your home's needs

Flexible installation

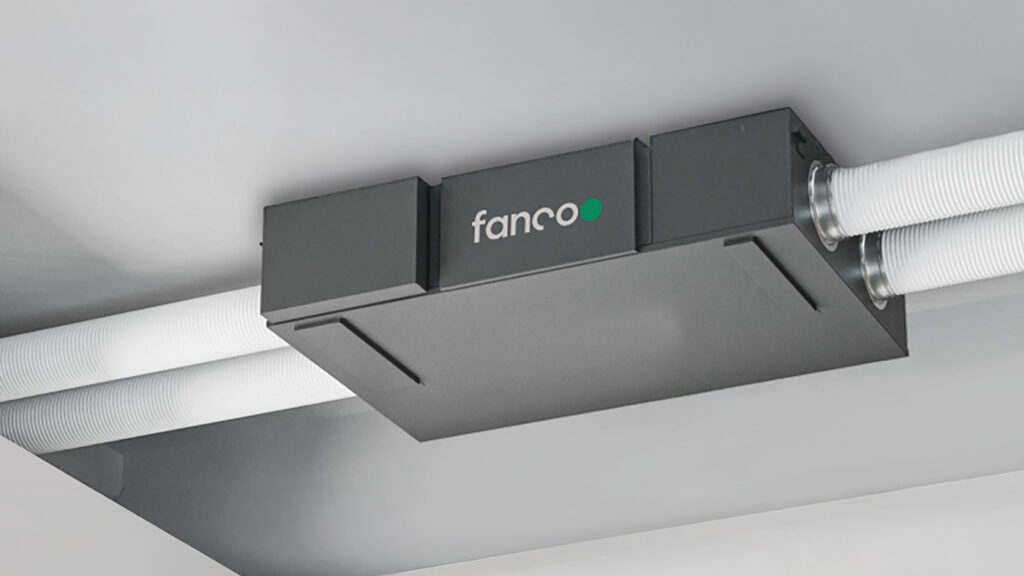

Engineered for both new builds and existing Australian homes, the Habitat Central can be mounted horizontally or vertically, ensuring efficient integration and reliable performance even where space is limited.

Customisable filtration
Supplied with G4 filters as standard for dust, lint, and pollen control, the system can be configured with higher-grade options to address finer particulates and allergens, supporting healthier indoor environments.

Filter	Status	Description
G4 Filter	Included as standard	Captures everyday dust, lint and pollen.
F8 Filter	Optional	Removes finer particles such as urban dust and smoke.
H13 Filter	Optional	Hospital-grade HEPA filter capturing ultra-fine allergens.

Find your perfect control option
From simple wall-mounted touchscreen controls to premium minute-unit control and app-based management, the Habitat Central offers flexible operation that adapts to different user preferences and levels of involvement.

Control Option	Type	Usage	Description
Standard	Wall Control	Can be used on its own or paired with WIFI	Provides full control, but does not allow for parameter and setting adjustment of timer, boost duration and all sensors.
Premium	Wall Control	Can be used on its own or paired with WIFI	Required if you wish to adjust parameters and settings of timer, boost duration and all sensors. Pair with WIFI module to access external sensors, app control & full customisation.
WIFI	Module	Can be used on its own or paired with wall control options	Allows control of the unit through the Tuya App. Required for external sensors and full app-based management.

Comparing the Habitat Central to other HRV’s:

The Fanco Habitat Central sets a new benchmark for Centralised HRV units in Australia, meeting the expectations of contemporary architecture while anticipating the direction of future building standards.

Indoor air quality and energy performance are no longer optional considerations for residential design and have transitioned to be standard defining elements that dictate how our homes are built. The Habitat Central addresses both the energy and air quality concerns within a singular unit, making it the most complete and future-ready centralised HRV solution for Australian homes.

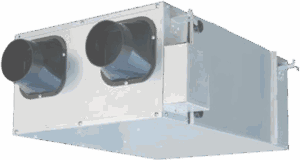

	Habitat Central	Typical Centralised HRV System*

Airflow Capacity	Up to 300 m³/h @ 100 Pa	200–250 m³/h @ 100 Pa
Heat Recovery Efficiency	Up to 92%	85–90%
Humidity Control	Ceramic Core creates Enthalpy	Not typically included
Filtration	G4 standard; Optional F8 upgrade, Optional H13 upgrade	G4 or F7 only
Noise & Power	Quiet EC motor; 30–180 W	Typically louder; 40–200 W
Installation Flexibility	Horizontal mount, Vertical mount	Horizontal only
Controls	Standard 3.5″ Touchscreen, Premium 7″ Touchscreen, Wi-Fi app	Basic wall control
Sensor Options	Temperature & Relative Humidity built-in, Optional CO₂, VOC, PM2.5, Up to 8 external sensors (WIFI only)	Temperature only

*Typical Centralised HRV System values are based on general market averages and common product specifications available in Australia. Figures are provided for comparative purposes only and may vary depending on the brand, model, installation conditions, and system configuration.

Technical Specifications:

Habitat Central Key Specifications:


Dimensions	1075 × 289 × 603 mm
Installation	Horizontal mounting Vertical mounting
Weight	37.7 kg
Core Material	Ceramic enthalpy core
Heat Recovery Efficiency	Up to 92% regenerating efficiency
Humidity Control	Managed by enthalpy from ceramic core
Motor	EC motor, 30 to 180 W
Noise	37.2 dB(A) @ 3 m
Airflow Capacity	100 to 300 m³/h (5 speeds)
Filtration	G4 filters standard Optional F8 upgrade Optional H13 upgrade
Controls	Standard 3.5″ touchscreen wall control Premium 7″ touchscreen wall control Wi-Fi module / app
Sensors	Internal temperature and relative humidity sensors Optional CO₂, VOC, PM2.5 sensor upgrade Up to 8 optional external sensors (Wi-Fi module upgrade only)
Additional Features	SMART home integration (RS485 Modbus)
Warranty	Two-year replacement warranty

Detailed Specifications:

Size and Installation

Dimensions (mm):

(Click to enlarge)

Length	1075 mm
Width	289 mm
Height	603 mm

Installation:

Weight	37.7 kg
Installation Orientation	Horizontal or vertical mounting

Motor, Performance & Airflow

Motor Details:

Motors	2 × EC motors (supply & extract)
Current	1.6 A (maximum)
Noise Rating	37.2 dB(A) @ 3 m

Airflow & Electrical Usage:

100 m³/h @ 50 Pa	30 W
150 m³/h @ 50 Pa	50 W
210 m³/h @ 50 Pa	70 W
250 m³/h @ 50 Pa	125 W
300 m³/h @ 100 Pa	180 W

Filtration & Air Quality

Filters:

G4 (Standard)

Role	Blocks dust, lint, pollen; protects core
Lifespan	~2 years
Care	Inspect, light clean, replace before clogging

F8 (Optional upgrade)

Role	Captures finer particles including smoke
Lifespan	12–18 months
Care	Replace when airflow drops; not washable

H13 (Optional upgrade)

Role	HEPA-grade; traps PM2.5 and allergens
Lifespan	6–12 months
Care	Replace only; use with G4/F8 to extend life

Controls & Sensors

Sensors:

Temperature

Included	Yes, (2 internal)
Purpose	Monitors supply and extract air to regulate exchanger performance

Relative Humidity

Included	Yes (2 internal)
Purpose	Tracks indoor RH; supports demand-control and condensation protection

CO₂ / VOC / PM2.5 (Optional Upgrade)

Included	Optional combined sensor (internal or external)
Purpose	Measures air quality by detecting carbon dioxide, volatile organic compounds, and fine particulates (PM2.5)

External Room Sensors (Optional Upgrade) (Requires WIFI Module)

Included	Up to 8 supported
Purpose	Remote monitoring of temperature, humidity and CO₂ in multiple rooms for targeted control

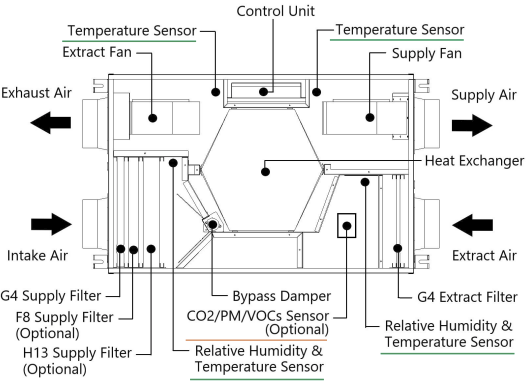

Sensor locations:

Note: External sensors connect via WIFI and are not included in this diagram.

(Click to enlarge)

Connectivity:

SMART home integration

RS485 Modbus compatible

Additional Materials:

View the product on the Manufacturers website on fanco.com.au:
(Opens in new window)

FANCO WEBSITE PRODUCT SPECSHEET

Video Guide: Habitat Central Connection Accessories Explained

Watch Product Development Manager, Miguel Araya walk through the key ducting components and system parts in our Fanco Habitat Central accessory guide, showing how they deliver fresh, filtered air to every room of your home.

New to HRV’s?

Check out our guide:

HRV's Explained

How to Order a Fanco Habitat Central

The Fanco Habitat Central is an advanced system supplied exclusively through Universal Fans — Australia’s national distributor of Fanco products. This arrangement ensures that every unit is backed by specialist knowledge, correct specification, and tailored guidance, giving homeowners, architects, and builders confidence that the system will perform to its full potential.

STEP 1

Contact Us:

Contact Universal Fans directly by phone, email, or through our showroom.

Our staff will be your single point of contact for all enquiries.

STEP 2

Share your project details:

Provide information about your home or project — whether it’s a new build or an existing property, the number of rooms, and any particular performance goals (energy efficiency, air quality concerns, or design constraints).

STEP 3

Expert consultation:

Universal Fans will work with you to specify the most appropriate Habitat Central installation for your home.
