2268m3/hr
Commercial Wall Fan 350 with Gravity Shutters
$249.00
The industrial-grade commercial wall exhaust fan features black powder-coated steel construction and self-closing louvres that prevent reverse airflow, which comes with gravity shutters. It is suitable for industrial, commercial, or domestic applications. The fan can extract heat, air, or dust or ventilate a space like a factory or garage. It is designed to extract large volumes of air with relatively low noise. It is easy to install and comes with a 75W motor ready to be hardwired by an electrician.
The image to the right shows the fan from the side with its louvres shut. As you can see, the fan has a cage covering the blade.
Fanmaster IWEL Spec Sheet
Fanmaster IWEL Installation Manual
IN STOCK – Typically dispatches within 3 business days
Secure
Checkout
Checkout
4.9 Google
Shop Rating
Shop Rating
Fast + Free
Shipping*
Shipping*
The industrial-grade commercial wall exhaust fan features black powder-coated steel construction and self-closing louvres that prevent reverse airflow, which comes with gravity shutters. It is suitable for industrial, commercial, or domestic applications. The fan can extract heat, air, or dust or ventilate a space like a factory or garage. It is designed to extract large volumes of air with relatively low noise. Easy to install and comes with a 240v motor ready to be hardwired by an electrician.
DISCLAIMER: This fan requires hardwiring by an electrician and will have to be boxed in with a timber frame or gal angle. Please consult the IWEL Installation Manual located on our website for comprehensive installation guidelines.
| Manufacturer | Fanmaster |
|---|---|
| Manufacturers Part Number | IWEL350 |
| Colour | Black |
| Capacity (m3/hr) | 2268 m3/hr |
| Capacity (l/s) | 630 l/s |
| Noise Level | 55 dB(A) |
| IP Rating | No IP Rating |
| Wall Hole Size | 408mm |
| Duct Size | Non Ductable |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician and will have to be boxed in with a timber frame or gal angle. |
| Warranty | The manufacturer offers a 1 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

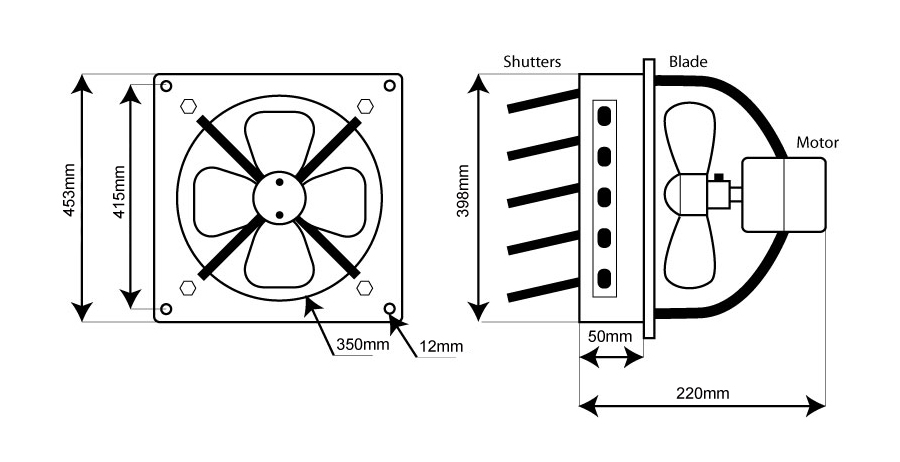

Dimensions
