Fanco Habitat Expert Short Core Heat Recovery With Wifi
$999.00 – $1,079.00
This Fanco Habitat offers a shorter ‘core’ – meaning the unit can be installed in walls from 200mm – 490mm thickness. If your wall is less than 200mm – we also offer an outer hood that can contain up to 160mm of the internal tubing, meaning the unit could be installed on a wall as thin as 40mm. This practical new addition increases the wall thickness tolerances, making the product suitable for virtually any standard wall thickness from 40mm up to 490mm. Available with a Base Hood or a Thin Wall Stainless Steel Hood. Continue reading to learn more about the product – if you have any questions feel free to reach out to one of our experts.

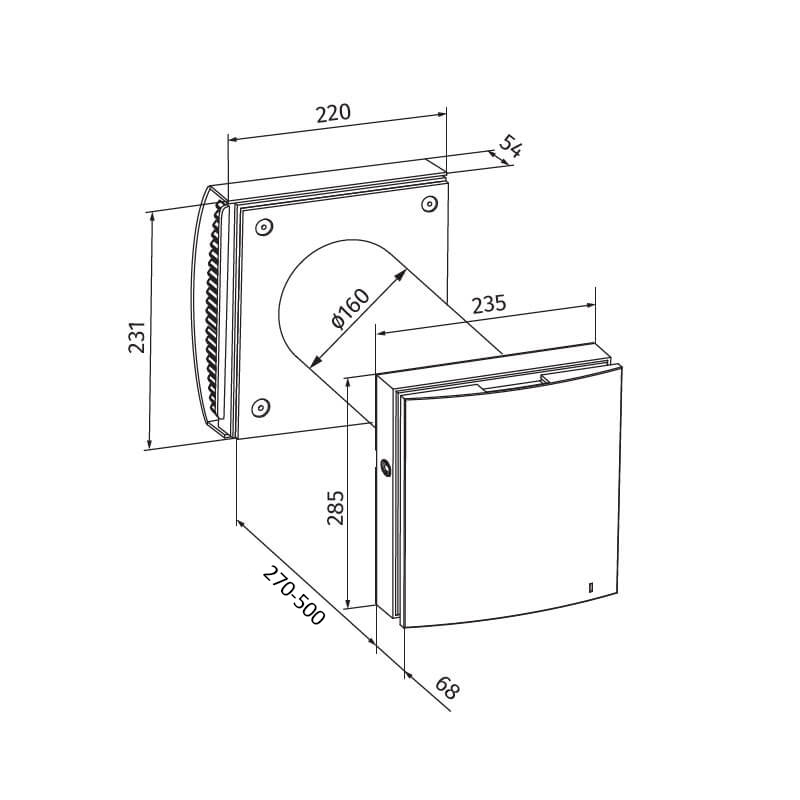

WALL CAVITY DEPTH BASED ON OPTIONS.
Base Model
With no optional accessories.
Base Model with F8 Filter
Optional filter requires extra 50mm within the wall cavity.
With Thin Wall Hood
Thin wall hood allows for 160mm of the tube to sit within – this means there is a larger protrusion from the external wall.
With Thin Wall Hood & F8 Filter
Thin wall hood allows for 160mm of the tube to sit within – this means there is a larger protrusion from the external wall. Add an extra 50mm for the optional filter.
Heating and cooling systems use a lot of energy, particularly in older buildings. This is in part because of air leaking from the building via traditional ventilation sources, like vents. Vents and windows allow fresh air to flow freely in and out of the building, but do nothing to regulate the temperature indoors. If you’re using a heater, a vent will allow warm air to escape as easily as it allows fresh air to come in. You might find that to stay warm, you need to run your heater at a higher setting or for a longer period of time. This uses more energy and costs you more money.
Newer builds are designed to minimise air leakage, but of course they still need ventilation. One option for air tight buildings is to incorporate a heat recovery system, which give you the best of both worlds. By using this type of system, you can maintain both temperature and a healthy, comfortable indoor environment.
How does decentralised heat recovery work?
A decentralised heat recovery system consists of at least one heat recovery unit, typically installed on an external wall. The unit operates in cycles. First, it extracts air through the wall for 70 seconds before switching to an intake mode. On each extraction cycle, the unit retains heat from the outgoing air stream. When it switches to an intake cycle, the heat is transferred to the incoming air.
Why choose the Fanco Habitat Expert with Wifi?
The Fanco Habitat Expert with Wifi features a high-quality ceramic accumulator which retains up to 95 % of heat energy. A single unit can operate as a complete system, which does not need to be hardwired to a wall control. Instead, the unit is operated by your choice of a smartphone, a handy remote-control handset or by the control panel on the unit.

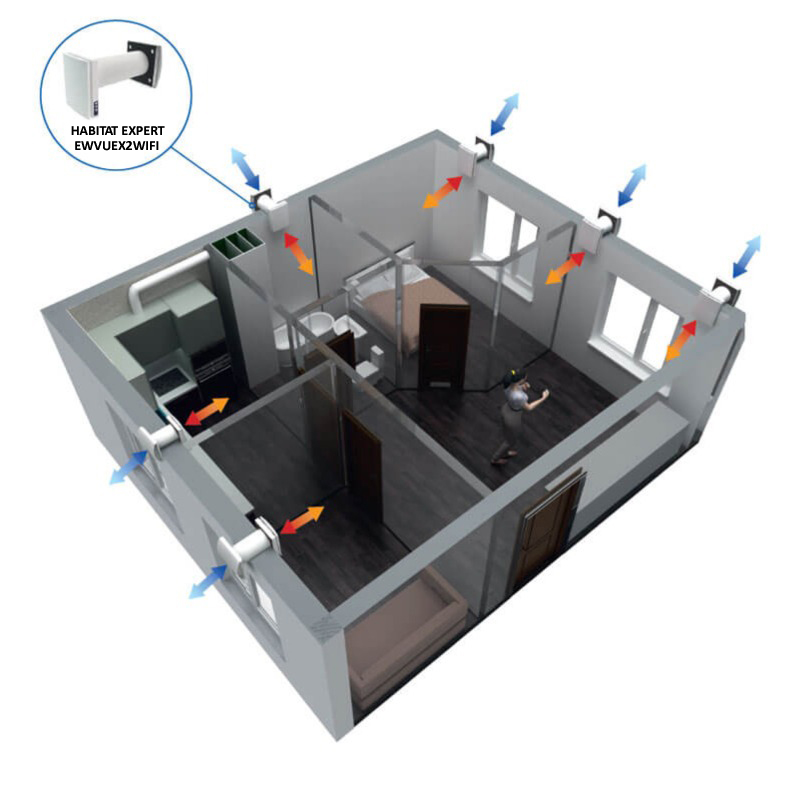

Using Wi-Fi technology, it’s also possible to connect multiple Fanco Habitat Experts together, which will can be operated by a master unit. You can also choose to operate a system of Habitat Experts connected by Wi-Fi using either the remote or the compatible smart phone app.
The app allows you to control up to 7 units from your phone, however it is possible to connect even more units together using a wireless router. Using this technique, the number of units you can connect together is only limited by the points available on the router.
Key Features
- Wi-Fi Technology allows you to control unit via smart phone as well as connect to additional units.
- Remote control operation – handset included
- Achieve up to 95% Heat Recovery (Regeneration efficiency valued at ≤ 95)
- Built in humidity sensor – configurable via the downloadable app (see image gallery)
- Automatic Shutters
- x2 in built G3 filters
- Optional F8 Filter Available
- Adjustable telescopic duct to adapt to wall thickness
- Reversible axial fan with energy efficient EC motor
- Anti-bacterial treatment – preventing bacteria generation inside of regenerator
Compare Decentralised Heat Recovery Units
Retrofitting the Habitat Expert to an Older Property
Heat recovery systems are most effective in airtight spaces, so most older properties will need to be sealed and insulated in order to benefit from heat recovery. However, one of the benefits of a decentralised heat recovery system like the Fanco Habitat Expert with Wifi is that it can operate in a single room. This means that you can seal and insulate a single room or perhaps part of the home and use decentralised heat recovery to save energy.
Fill out the form below and we will be in touch with to discuss which Heat Recovery option is best for you
| Transfer System Type | Ceramic |
|---|---|
| Motor Type | EC |
| Control | Remote Control, Smart Wifi Mobile App |
| Capacity (m3/hr) | 0050 m3/hr |
| Heat Recovery Efficiency | Up to 95% |
| Noise Level | 28 dB(A) |
| Required Wall Depth | 200mm (Min) to 490mm (Max) (Wall Hood accessory can reduce this by 160mm – meaning the product could be installed on a wall 40mm thick). See accessories section for hood. |
| Filter Class (Included) | G3 |
| Optional Filter Available as Accessory | F8 |
| IP Rating | IP24 |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Colour | Base (White Hood), Thin Wall (Stainless Steel Hood) |
Technical Data
| Speed | 1 | 2 | 3 |
|---|---|---|---|
| Power (w) | 5 | 6 | 8.5 |
| Current (A) | 0.035 | 0.040 | 0.059 |
| Airflow in ventilation mode (m3/hr) | 15 | 30 | 50 |
| Airflow in heat recovery mode (m3/hr) | 8 | 15 | 25 |
| Noise at 3m (dBA) | 4 | 16 | 28 |
Dimensions
