1700m3/hr
Fanco OV1 315 Commercial Exhaust Fan
$449.00
The Fanco OV1 315 is a powerful axial exhaust fan built for commercial and industrial use in spaces like kitchens, workshops, and warehouses. Its steel body is finished with a protective coating for extra durability in high-use environments. The fan uses a high-quality ball bearing motor designed for continuous running and includes thermal protection to prevent overheating. Compatible with 315mm duct size and is easy to install on either walls or ceilings, works best when connected to short, straight duct runs for direct air extraction.
Download Spec SheetIN STOCK – Typically dispatches in 1-2 business days
Secure
Checkout
Checkout
4.9 Google
Shop Rating
Shop Rating
Fast + Free
Shipping*
Shipping*
Fanco OV1 315 Main Features
- High Extraction Capacity: Delivers a powerful airflow of 1700 m³/hr (472.2 L/s) to maintain air quality in demanding spaces.
- Durable Build: Robust steel housing finished with a corrosion-resistant polymer coating.
- Engineered for Longevity: Equipped with a high-quality ball bearing motor rated for continuous use.
- Flexible Installation: Suitable for wall or ceiling mounting; ideal for both supply and exhaust ventilation.
- Speed Controllable: Compatible with external speed controllers (such as the ESEEAS dimmer) for tailored airflow management.
- Safety Rated: IP24 rating and integrated thermal protection for reliable operation in varied conditions.
| Manufacturers Part Number | ECVUOV315 |
|---|---|
| Capacity (m3/hr) | 1700 m3/hr |
| Capacity (l/s) | 472.6 l/s |
| Current | 0.75A |
| Noise Level | 54 dB(A) |
| IP Rating | IP24 |
| Wall Hole Size | ø 312mm |
| Ceiling Hole Size | ø 312mm |
| Duct Size | 350mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

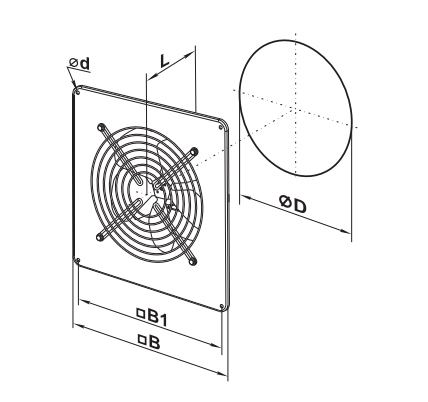

Dimensions
| D | B | B1 | D | L |
| 312mm | 430mm | 380mm | 9mm | 170mm |

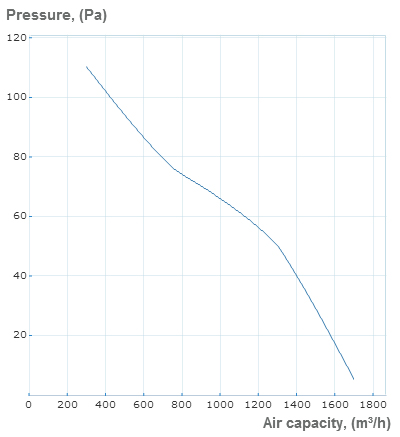

Pressure Curve
