Hunter Pacific The Big Fan v2 DC – Matt Black & Natural Oak Blades 86″ (Remote & Wall Control)
$1,868.00
The extra large 86″ The Big Fan v2 from Hunter Pacific is another great option for those looking for a ceiling fan for commercial, industrial and residential locations. Offering 9-speeds of control via the included remote and wall control the fan is powered by an efficient DC motor which consumes 54.1W on max speed while moving a gigantic 35,480 m3/hr of airflow. The extra large blade span means the fan features reinforced blades merging aluminium and high-grade plastic to form aerodynamically wedge-compressed blades. The fan is suitable for installation indoors, outdoors undercover and coastal locations.
This model utilises a DC motor, however, it has an internal inverter and is therefore compatible with normal AC electrical systems. It cannot be connected directly to a DC power source.
IN STOCK – Typically dispatches within 3 business days
Save Time with our Installation Service.
Use the link on your order confirmation to book your install date.
Click here for more details
Hunter Pacific The Big Fan v2 DC Main Features
| Installation Location | Indoor, Outdoor (Undercover) & Coastal |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 222cm (86″) |
| Blade Pitch | 15 Degrees |
| Motor Type | DC motor |
| Operation | Remote Control & Wall Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 450mm (500mm to base of motor) |
| Angled Ceilings? | Suitable for FLAT ceilings only |
| Light | Not Included |
Hunter Pacific The Big Fan v2 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 11.2 | 11598 m3/hr |
| 2 | 70 | 15.9 | 13987 m3/hr |
| 3 | 83 | 25.3 | 16897 m3/hr |
| 4 | 89 | 30 | 18095 m3/hr |
| 5 | 94 | 34.6 | 20698 m3/hr |
| 6 | 98 | 39.6 | 24557 m3/hr |
| 7 | 102 | 44.4 | 28568 m3/hr |
| 8 | 105 | 48.4 | 31587 m3/hr |
| 9 | 120 | 54.1 | 35480 m3/hr |
Note: Fan and components must be installed by Qualified Persons.
| Manufacturer | Hunter Pacific |
|---|---|
| Manufacturers Part Number | TBF0864 + DCWC2409 |
| Overall Diameter | 86" (2185mm) |
| Motor Type | DC |
| Motor Colour | Matte Black |
| Blade Colour | Natural Oak |
| Number of Blades | 6 |
| Control | Remote Control, Wall Control |
| Light | No Light |
| Suitable for Angled Ceilings | Suitable for FLAT Ceilings only |
| Ceiling Angle | Suitable for FLAT Ceilings only |
| Warranty | Hunter Pacific: This fan comes complete with a 3 year in-home manufacturer's warranty on the fan followed by a 4 year extended parts only warranty on the motor only. |
| Installation Location | Indoor, Outdoor – Fully Undercover, Coastal |

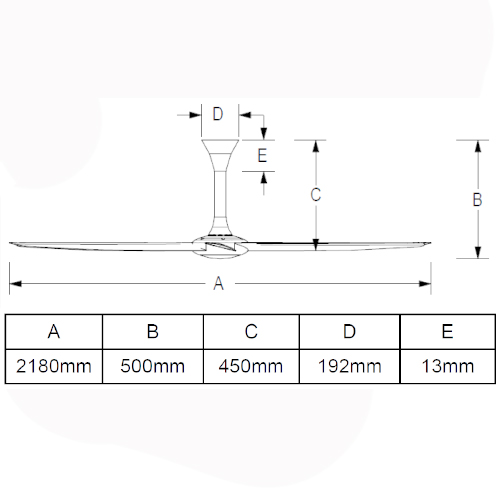

Dimensions
