Kit 5: Medium / Large Bathroom – Up to 37m³ (TT 150)
Original price was: $289.00.$249.00Current price is: $249.00.
The kit features one inline fan, usually placed in the roof space, one vent for the ceiling of the room, another vent for the outside wall or eave and includes flexible duct. This kit also includes a back draft shutter to stop warm air escaping or cold air coming into the house.
The items in this kit have been selected for the purposes of DIY installation. Please keep in mind that adding hardwired accessories (speed controllers etc) may mean that you will need to hire an electrician.
IN STOCK – Typically dispatches in 1-2 business days
Kit Includes:
- 1x TT 150 Inline Fan (EXVUTT150) Click to view fan Specs
- 1 x Internal Plastic Vent Cone 150mm (EVFLC150)
- 1 x External Vent 150mm (EVVUFS150)
- 1 x Back draft shutter 150mm (EABDP150VU)
- 1 x 6m Flexible Duct 150mm (EDNU1506MF)
- 1 x Duct tape (EATAPED)
- 1 x Lead and Plug.Lead and plug will be connected to high speed. To use with optional speed controller, lead and plug will need to be removed so the fan can be hard wired.
Motor Capacity: 520 m3/hr (144.5 l/s)
Motor Type: Mixflow

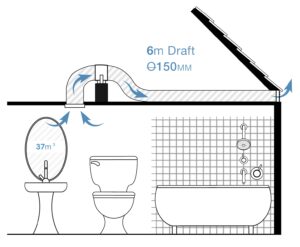

The graphic below is an example (not to scale) to demonstrate an effective use of this kit.
| Installation | This fan comes with a lead and plug for connection to a powerpoint. |
|---|---|
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
