550 m3/hr

Kit 6 Premium: Large Bathroom With 2 Intakes – Up to 37m³ (TT 150 Silent)

Name: Kit 6 Premium: Large Bathroom With 2 Intakes - Up to 37m³ (TT 150 Silent)
SKU: EKFCTTS2F
Availability: InStock

$549.00

The kit features one inline fan, usually placed in the roof space, one vent for the ceiling of the room, another vent for the outside wall or eave and includes flexible duct. This kit also includes a back draft shutter to stop warm air escaping or cold air coming into the house. The items in this kit have been selected for the purposes of DIY installation.

IN STOCK – Typically dispatches in 1-2 business days

SKU: EKFCTTS2F Categories: Fanco Exhaust Fans, Inline Fan Kits

Secure
Checkout

4.9 Google
Shop Rating

Fast + Free
Shipping*

Description
Specifications

Kit Includes:

1x Silent TT 150 Inline Fan (EXVUTTS150RV) Click to view fan Specs
2 x Internal Plastic Vent Cone 150 mm (EVFLC150)
1 x External Vent 150 mm (EVVUFS150)
1 x Back draft shutter 150 mm(EABDP150VU)
1 x 6m Flexible Duct 150mm (EDNU1506MF)
1 x T Junction (EAVUTJ150P)
1 x Duct tape(EATAPED)
Lead and Plug

Motor Capacity: 550 m3/hr (152.7 l/s)
Motor Type: Mixflow

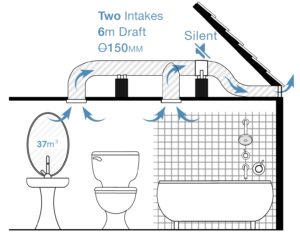

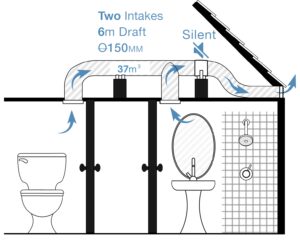

The graphic below is an example (not to scale) to demonstrate an effective use of this kit. The 2 Intake system can be used either in one large room requiring 2 intakes or in 2 separate adjacent rooms with 1 intake each connecting to the same fan. Examples of this are shown below.

Please keep in mind that adding hardwired accessories may mean that you will need to hire an electrician. For any questions, please feel free to contact our customer service team.

Installation	This fan comes with a lead and plug for connection to a powerpoint but adding accessories may require an electrician.
Manufacturer	Fanco
Warranty	The manufacturer offers a 2 year replacement warranty (conditions apply)
General Exhaust Fan Advice	It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan.
