1880m3/hr
VKM Centrifugal Inline Fan 315
$599.00
RRP: $619.00
The RRP price is provided by the manufacturer.
This Fanco VKM 315 Centrifugal inline fan is a quality fan with centrifugal motor. This is the largest size in the range with a powerful extraction rate. Consequently the fan is well suited to applications which require a fan with a high airflow motor. For comprehensive specs download the VKM Centrifugal range spec sheet.
IN STOCK – Typically dispatches in 1-2 business days
| Manufacturers Part Number | EXVUV315 |
|---|---|
| Capacity (m3/hr) | 1880 m3/hr |
| Capacity (l/s) | 522.22 l/s |
| Current | 1.34A |
| Noise Level | 54 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 315mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

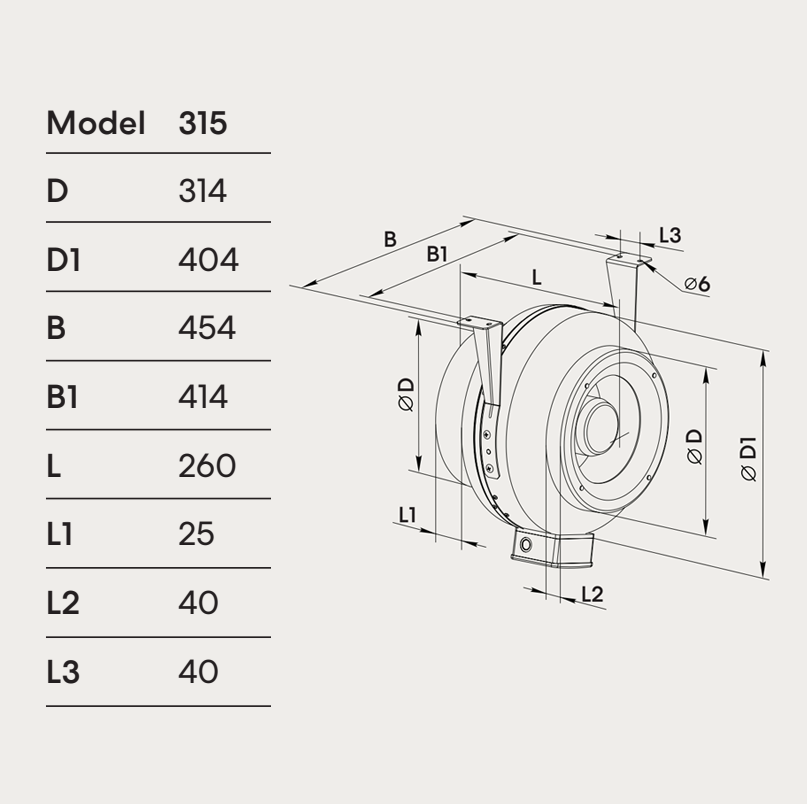

Dimensions
| D | D1 | B | B1 | L | L1 | L2 | L3 |
| 314mm | 404mm | 454mm | 414mm | 260mm | 25mm | 40mm | 40mm |

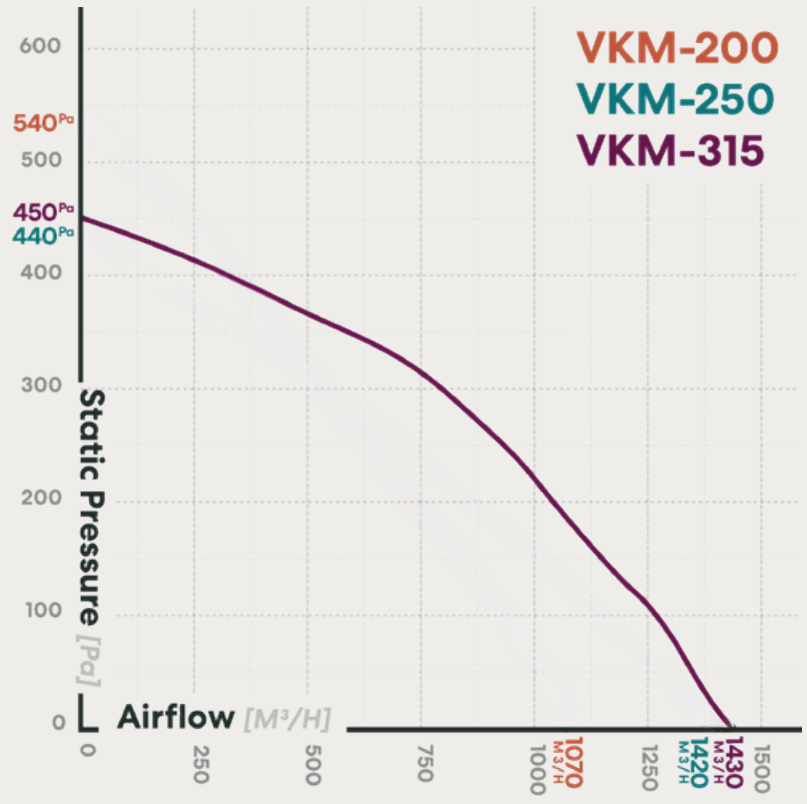

Pressure Curve
