270m3/hr
VKM Centrifugal Inline Fan 100 with plug
Original price was: $294.00.$254.00Current price is: $254.00.
This Fanco VKM Centrifugal inline fan is a quality fan with centrifugal motor. Available in six sizes this fan may be used for exhaust, air transfer and other applications. This model comes with a lead and plug, which allows for “Do-It-Yourself” installation. Please keep in mind that choosing this option may limit your choices of controllers/accessories as many of them require hard wiring by an electrician.
| Manufacturers Part Number | EXVUV100 |
|---|---|
| Capacity (m3/hr) | 0270 m3/hr |
| Capacity (l/s) | 75 l/s |
| Current | 0.32A |
| Noise Level | 47 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 100mm |
| Material | Metal |
| Installation | This fan comes with a lead and plug for connection to a powerpoint but adding accessories may require an electrician. |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

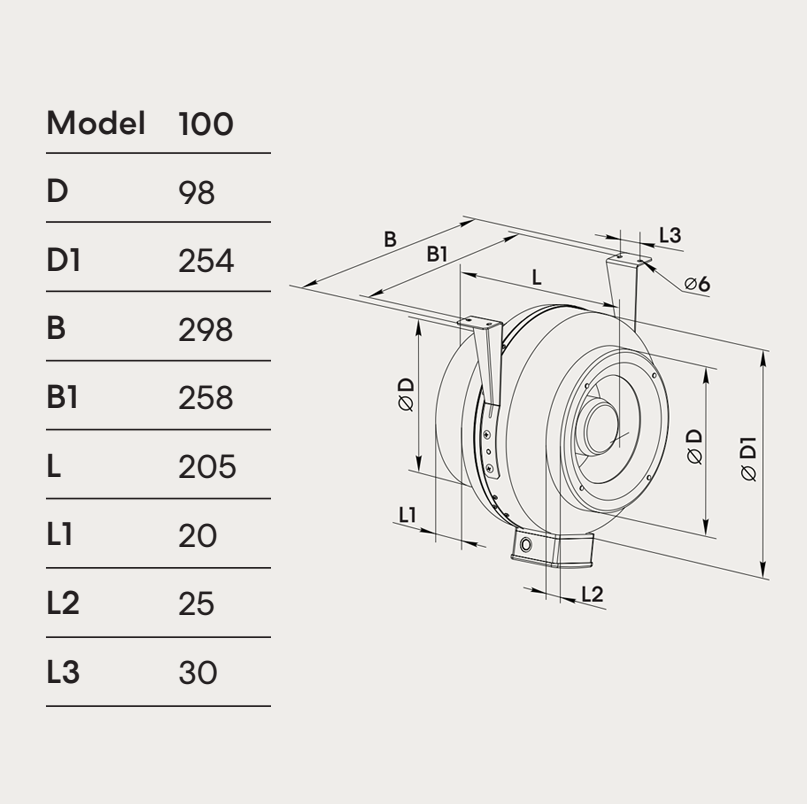

Dimensions
| D | D1 | B | B1 | L | L1 | L2 | L3 |
| 98mm | 254mm | 298mm | 258mm | 205mm | 20mm | 25mm | 30mm |

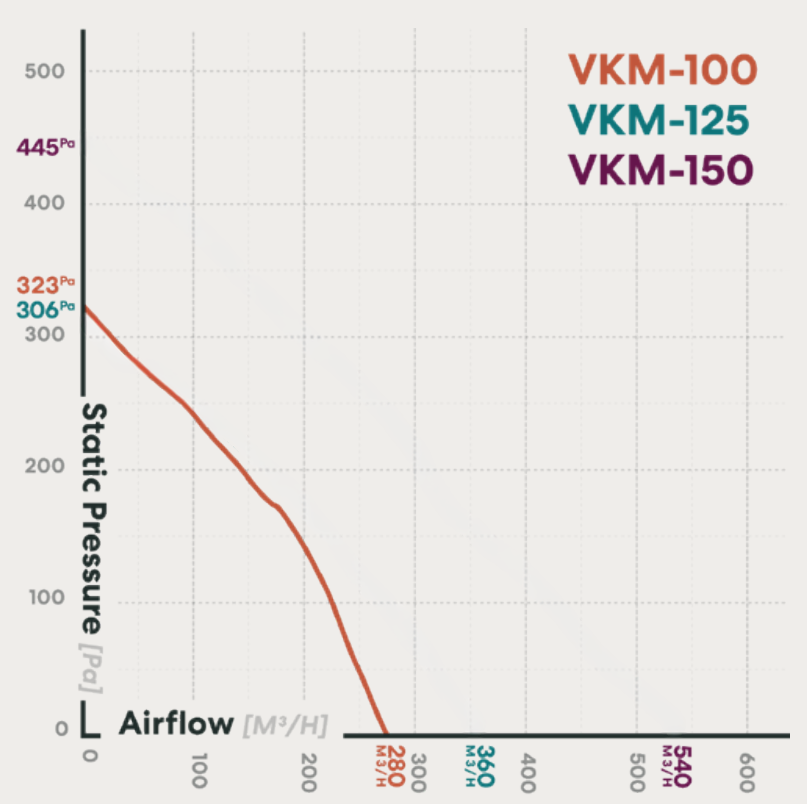

Pressure Curve
