Vortice CA External Wall Mounted Exhaust Fan 150
Original price was: $679.00.$629.00Current price is: $629.00.
The Vortice CA 150 Wall Exhaust Fan is an ideal solution for instances where centralised extraction is necessary for more that one room in a particular space. It features two speed options and it’s P04 Pressed Steel enclosure is coated with long-life polyester paint.
IN STOCK – Typically dispatches within 3 business days
The Vortice CA 150 External Wall Mounted Exhaust Fan utilises a high quality motor and is ideal when more than one room requires centralised extraction. Ideal for domestic use including kitchens, bathrooms, cellars and storage areas as well as workplaces, fitness centres, bars, shops and canteens. The Vortice CA has a P04 pressed steel outer enclosure with a polyester paint finish meaning not only is it long-life but resistant to atmospheric agents.
This exhaust fan has a 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller. There is also an automatic close function which prevents air returning to the room.
| Manufacturers Part Number | VORTICE CA 150 WE D |
|---|---|
| Capacity (m3/hr) | 0530 m3/hr |
| Capacity (l/s) | 147.2 l/s |
| Current | 0.53A |
| Noise Level | 51.4 dB(A) |
| IP Rating | IPX5 |
| Duct Size | 150mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Vortice |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

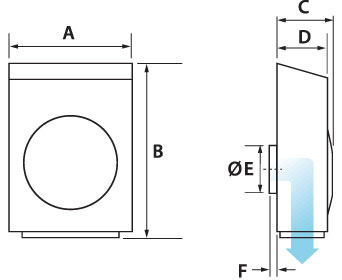

Dimensions
| A | B | C | D | E | F |
| 360mm | 430mm | 173mm | 155mm | 147mm | 20mm |
