About the Vortice Lineo Quiet ES 125

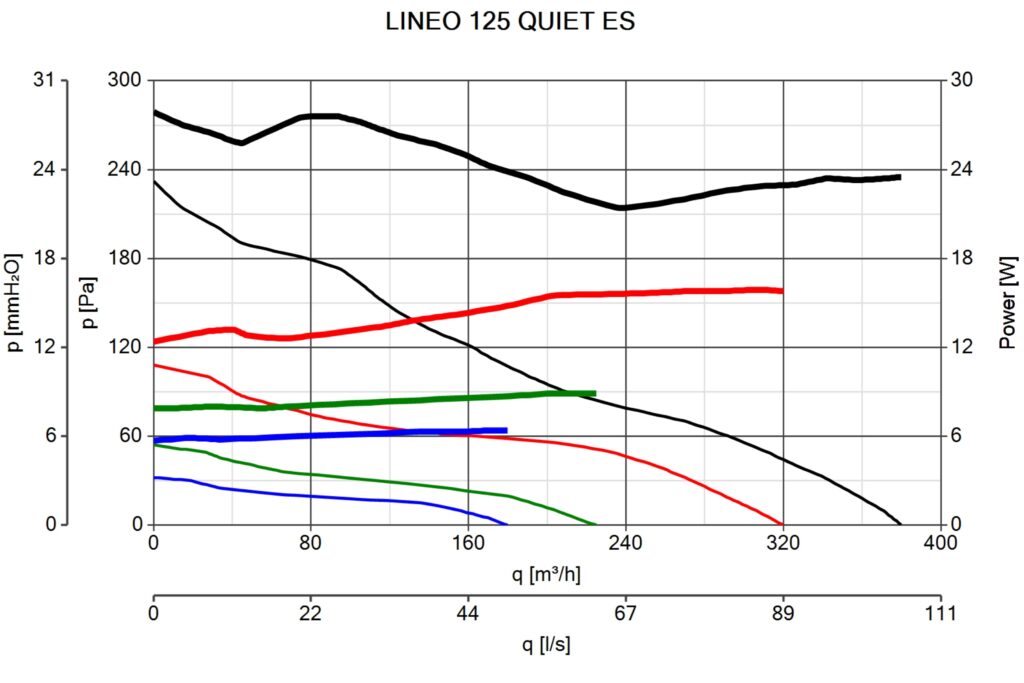

Capacity: 380 m3/hr (105.6 l/s)
Motor Type: EC Mixflow

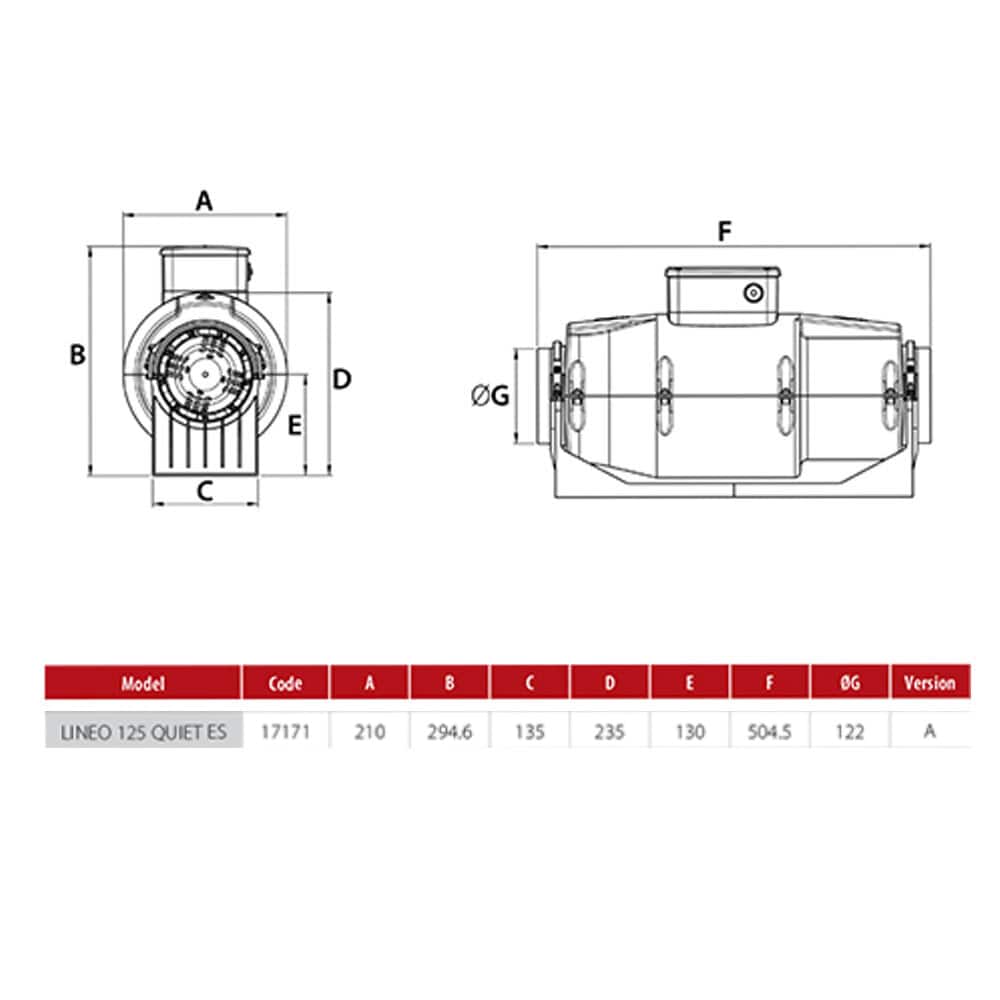

Ductable: Yes (125mm duct diameter)
Enclosures constructed from E2 class fire-resistant plastic resin, in compliance with ISO EN 11925-2:2010 standards. Suited for use in proximity to motor and electrical components.
Casing has a coating that is designed to absorb sound, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
EC (brushless) motor that is protected against thermal damage. Shaft mounted on ball bearing supports, paired with a centrifugal impeller.
High water resistance: IPX5 (if installed in a duct).
Equipped with a thermal fuse, a safety mechanism that prevents overheating.
Ultra energy efficient – on high speed, power consumption of only 24 watts while providing an airflow rate of 380 m3/hr.
Note – Electrician required for all 3 options:
Wire in a standard fashion to run as a single-speed fan
Set it up to be a 2-speed motor (you can specify the high and low speed) and just wire it up to a standard position switch to go between high or low
For enhanced control similar to a dimmer switch, connect it to a potentiometer (referenced below)
