537m3/hr

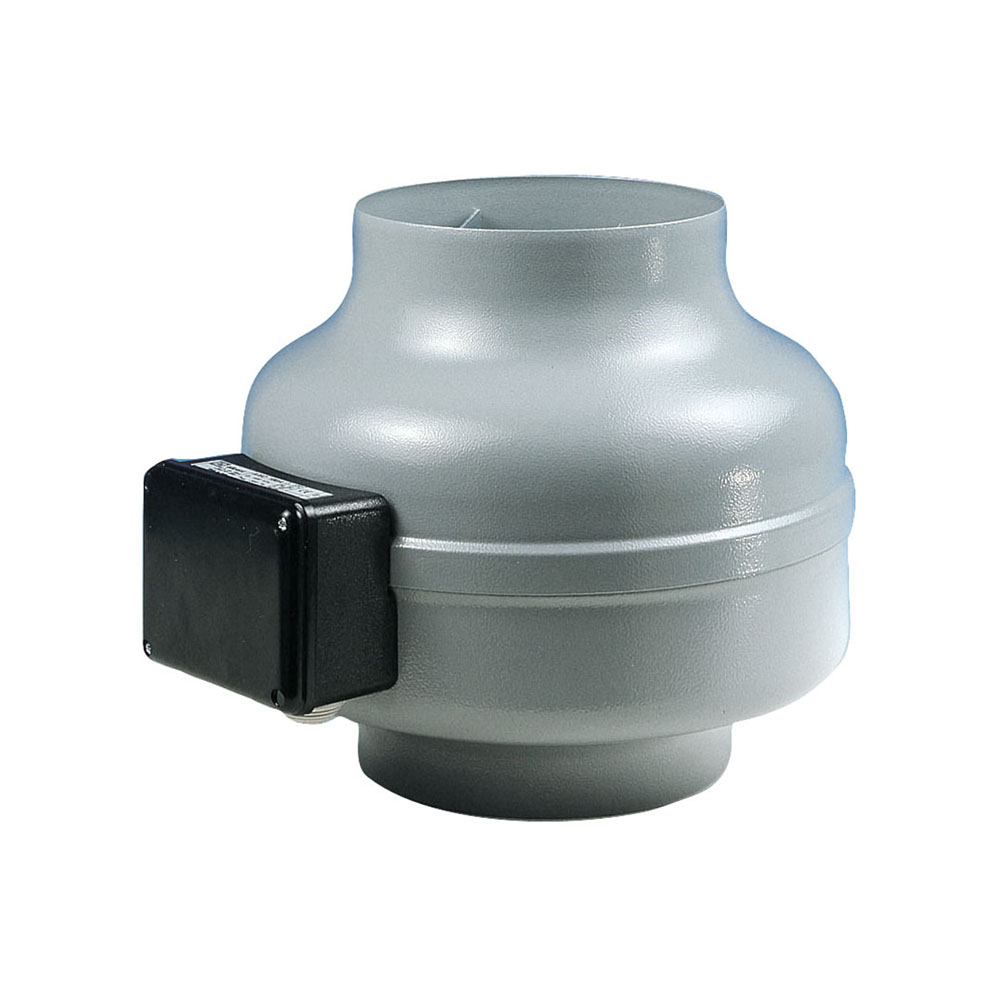

Elicent AXC 150 B – Centrifugal Inline – Metal
Original price was: $369.00.$319.00Current price is: $319.00.
Manufactured in Italy, this sturdy and efficient centrifugal inline fan is designed to deliver reliable air circulation with a powerful airflow capacity of 537 m³/hr. Housed in a heavy-duty metal casing with a 150mm duct connection, it ensures durability and performance. Its flexible design makes it suitable for a variety of installations, whether used for exhaust or supply ventilation. Compatible with a wide range of accessories, the fan can be easily tailored to meet specific ventilation needs, making it an ideal solution for customised airflow systems in demanding settings.
Pre-Order Product: ETA Mid Jun
Elicent AXC 150 B Features

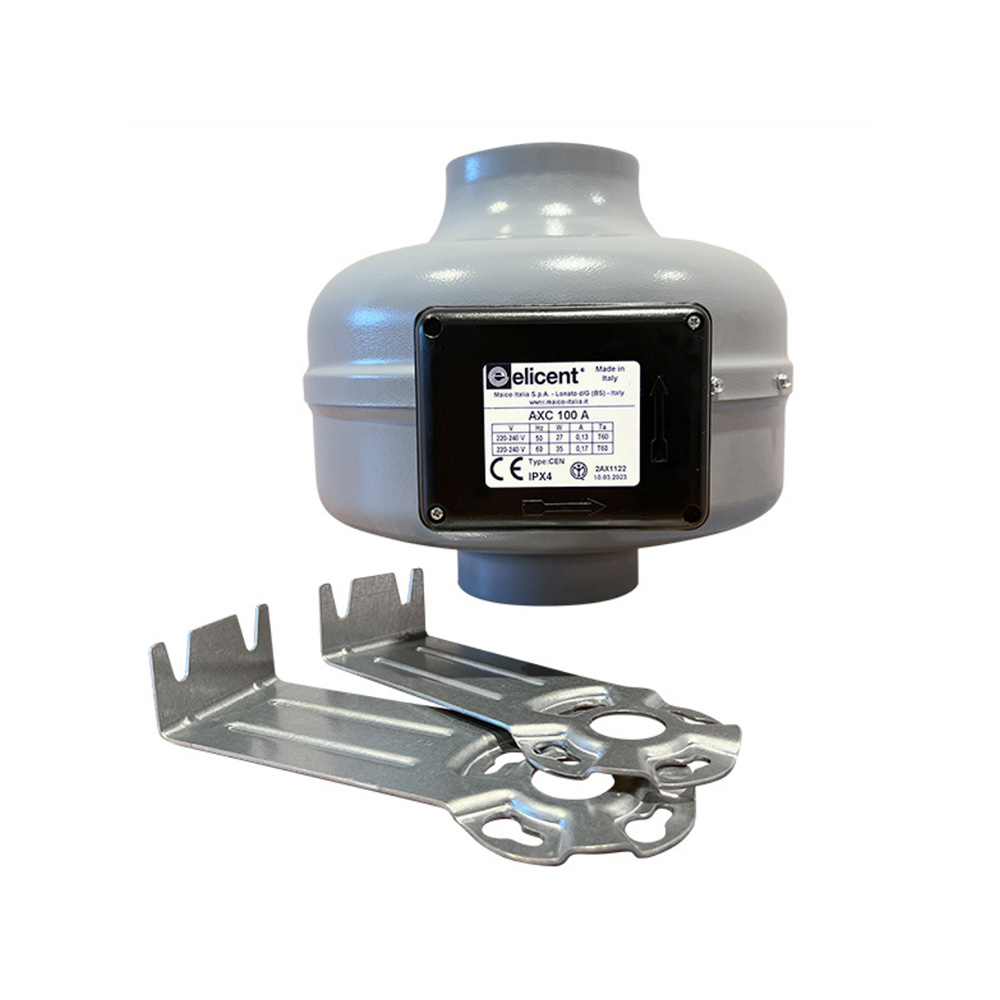

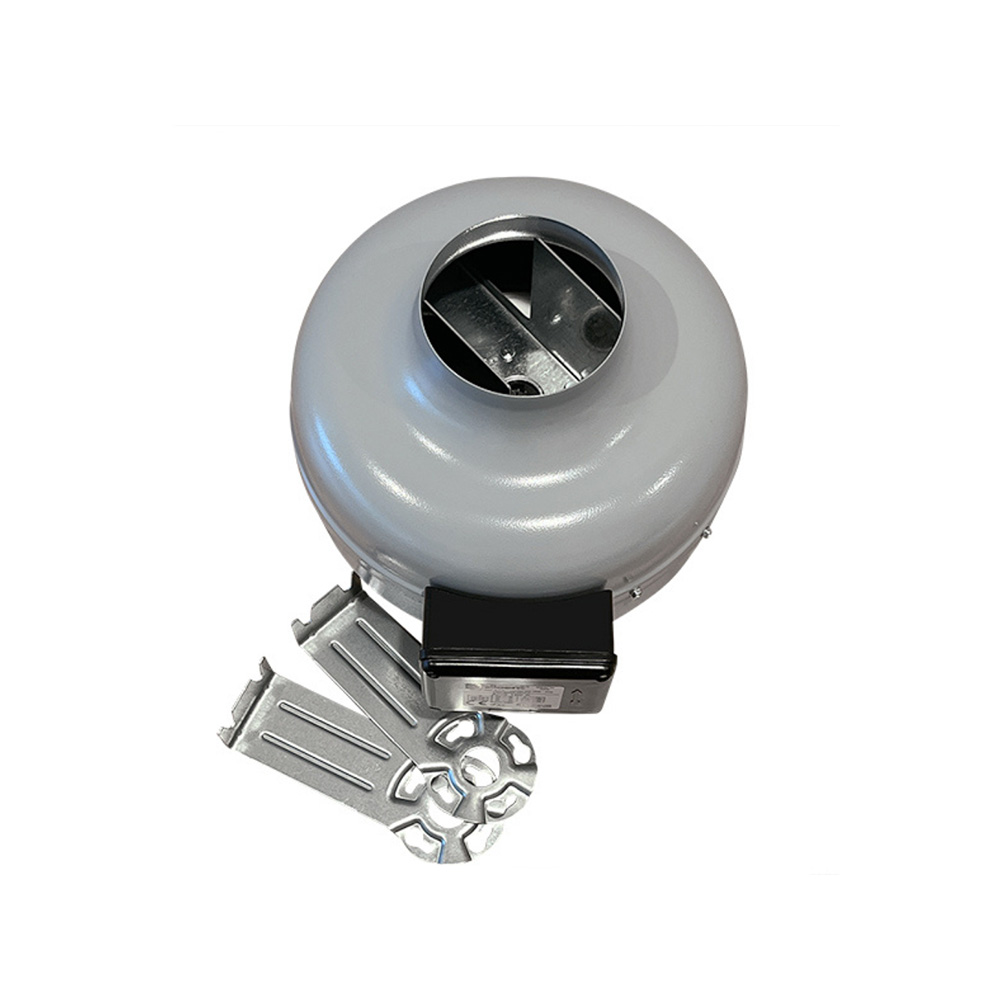

This high-performance inline fan features a backward-curved centrifugal impeller that efficiently moves air while generating the static pressure required for ducted systems. Designed for durability and reliability, it is equipped with long-life bearings and thermal overload protection—a critical safety feature that prevents the motor from overheating due to prolonged use or obstructions, thereby reducing the risk of failure and extending the fan’s lifespan. With an IPX4 rating, the fan’s housing is made from heavy-gauge steel coated with epoxy powder. This makes it ideal for various indoor environments, including those with high humidity. Built for long-term performance in demanding conditions, the fan also comes supplied with wall fixing brackets for convenient installation.
| Manufacturers Part Number | 2AX1599 |
|---|---|
| Capacity (m3/hr) | 537 m3/hr |
| Capacity (l/s) | 149.17 l/s |
| Noise Level | 39 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 150mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

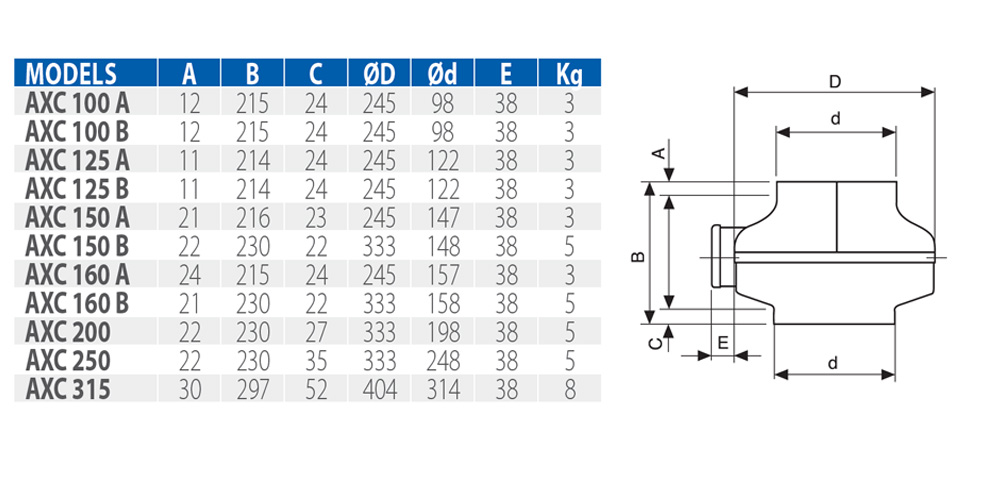

Dimensions
Pressure Curve
Accessories
AIR QUALITY
