430m3/hr

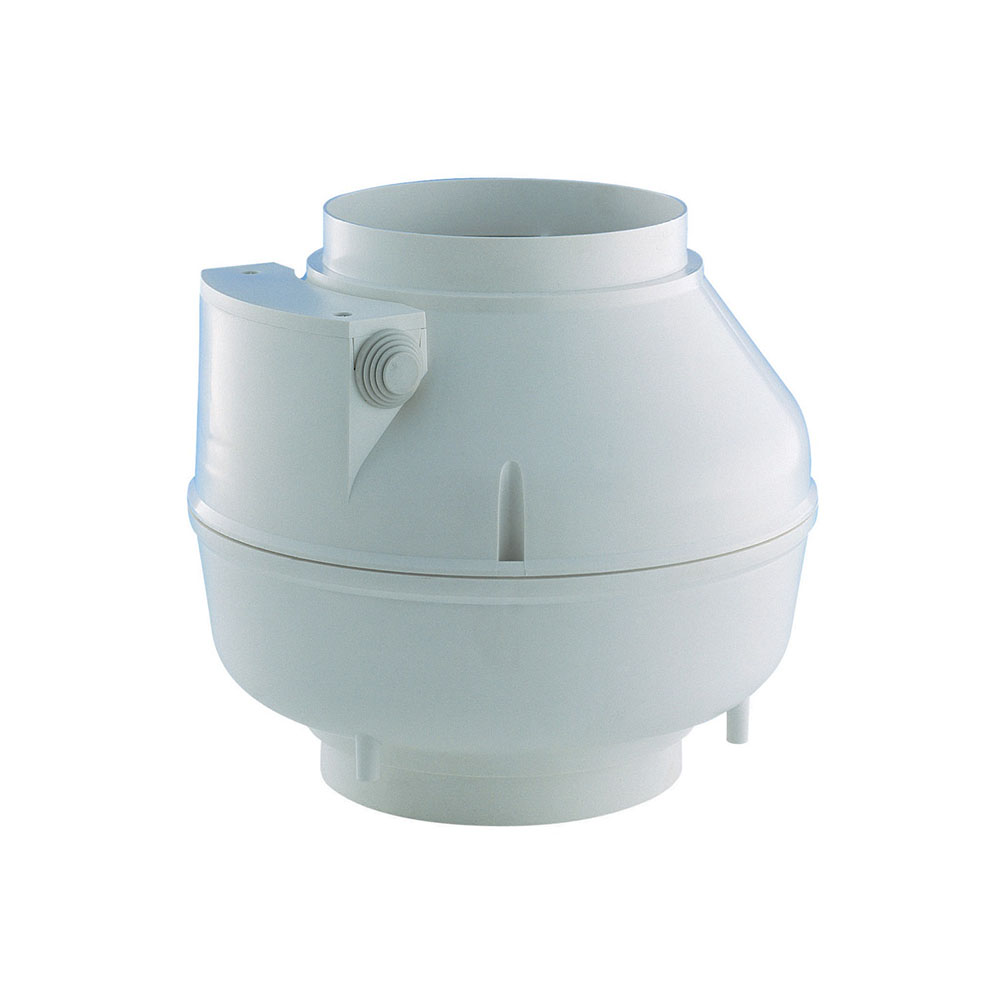

Elicent AXC 150 TP – Centrifugal Inline – Plastic
Original price was: $279.00.$239.00Current price is: $239.00.
The Italian-engineered centrifugal inline fan is meticulously designed to enhance 150mm ducted ventilation systems, expertly crafted from robust plastic or premium technopolymer materials. This versatile unit is suitable for both residential applications and select commercial settings, delivering an impressive airflow capacity of 430 m³/hr. Its streamlined design is not only visually appealing but also ensures consistently reliable performance. The integration of backward-curved blades further optimises airflow efficiency, solidifying this fan’s reputation as a high-performance solution in modern ventilation technology.
Pre-Order Product: ETA Mid Jun
Elicent AXC 150 TP Features
- Compact inline form simplifies integration, especially in space-restricted installations.
- Constructed from durable technopolymer, the housing is lightweight, corrosion-resistant, non-flammable, and self-extinguishing, ensuring both longevity and safety.
- A reliable ball-bearing motor supports maintenance-free continuous operation and a long service life, while a thermal cut-out provides added protection against overheating.
- Engineered for quiet performance, it’s well-suited for noise-sensitive environments.
- With an IPX2 rating, included plastic mounting bracket, and versatile mounting options, the fan offers flexible installation across various duct layouts.
- Hardwiring by a qualified electrician is required.
| Manufacturers Part Number | 2AX6100 |
|---|---|
| Capacity (m3/hr) | 0430 m3/hr |
| Capacity (l/s) | 119.44 l/s |
| Noise Level | 39 dB(A) |
| IP Rating | IPX2 |
| Duct Size | 150mm |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
