887m3/hr

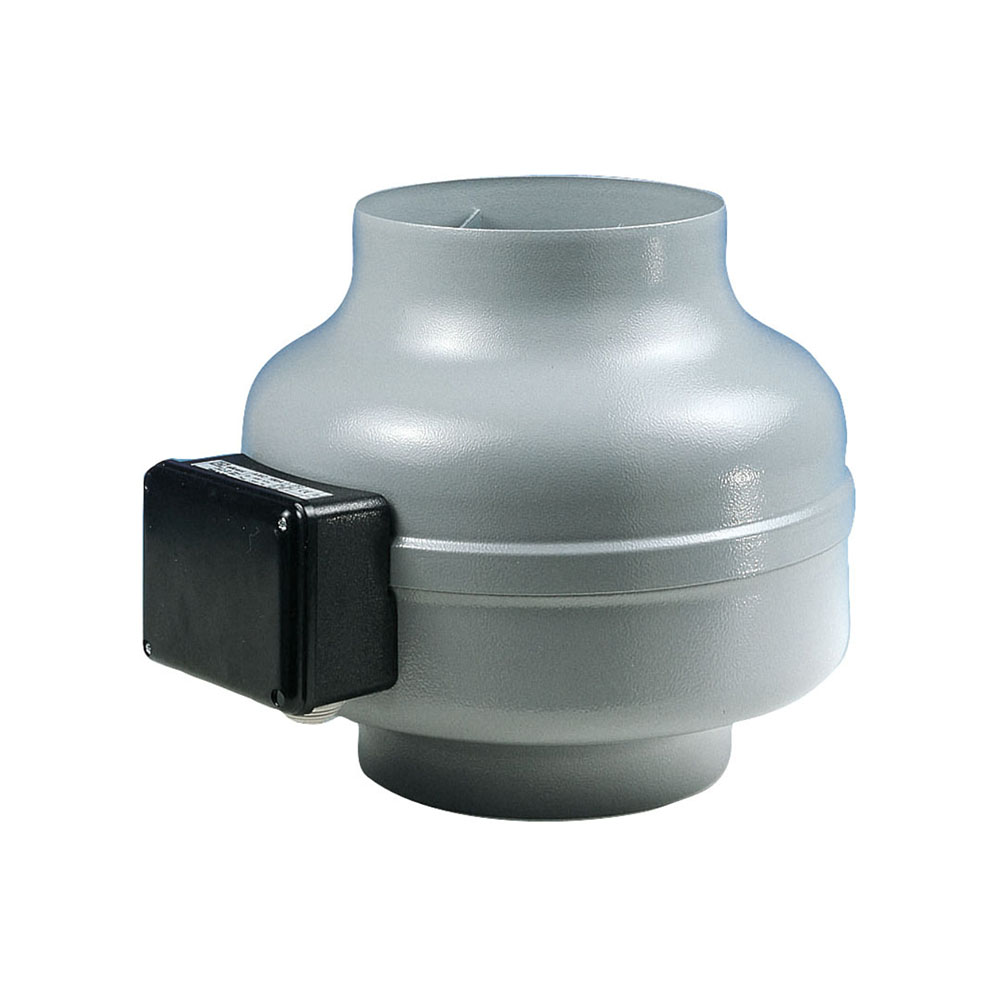

Elicent AXC 200 – Centrifugal Inline – Metal
Original price was: $439.00.$389.00Current price is: $389.00.
Expertly manufactured in Italy, this high-capacity centrifugal inline fan combines durability with efficiency, delivering a strong airflow of 887 m3/hr. Built with a heavy-duty metal casing and a 200mm duct connection, it’s designed to ensure reliable air circulation. Its flexible installation options make it suitable for use in exhaust or supply ventilation systems. The fan is also compatible with a variety of accessories, allowing for tailored ventilation setups to meet specific project requirements. Ideal for demanding environments, this fan offers long-lasting performance and versatile functionality.
Pre-Order Product: ETA Mid Jun
Elicent AXC 200 Features
This high-performance inline fan features a backward-curved centrifugal impeller that efficiently moves air while generating the static pressure required for ducted systems. Designed for durability and reliability, it is equipped with long-life bearings and thermal overload protection—a critical safety feature that prevents the motor from overheating due to prolonged use or obstructions, thereby reducing the risk of failure and extending the fan’s lifespan. With an IPX4 rating, the fan’s housing is made from heavy-gauge steel coated with epoxy powder. Ideal for various indoor environments, including those with high humidity. Built for long-term performance in demanding conditions, the fan also comes supplied with wall fixing brackets for convenient installation.
| Manufacturers Part Number | 2AX2131 |
|---|---|
| Capacity (m3/hr) | 887 m3/hr |
| Capacity (l/s) | 246.39 l/s |
| Noise Level | 34 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 200mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
Dimensions

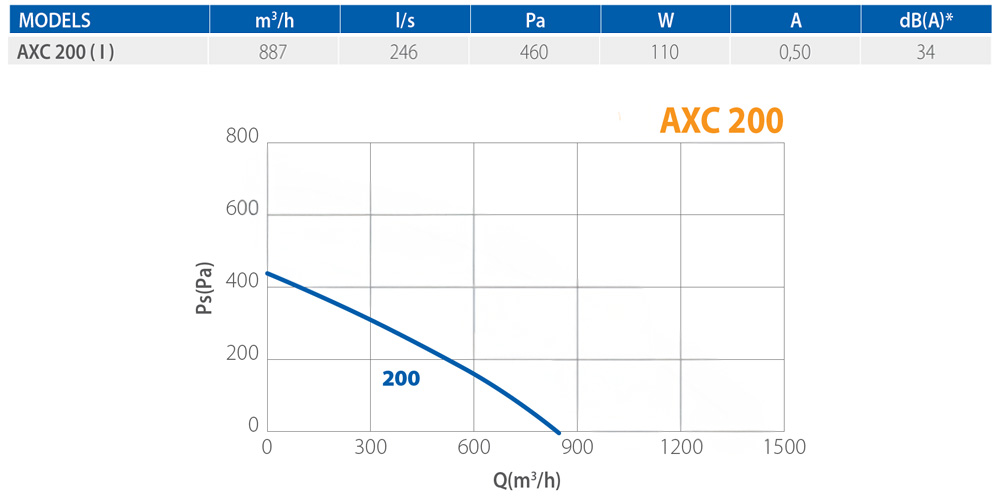

Pressure Curve
