300m3/hr
Elicent AXM Inline Mixflow – 125mm Duct – Plastic
Original price was: $199.00.$179.00Current price is: $179.00.

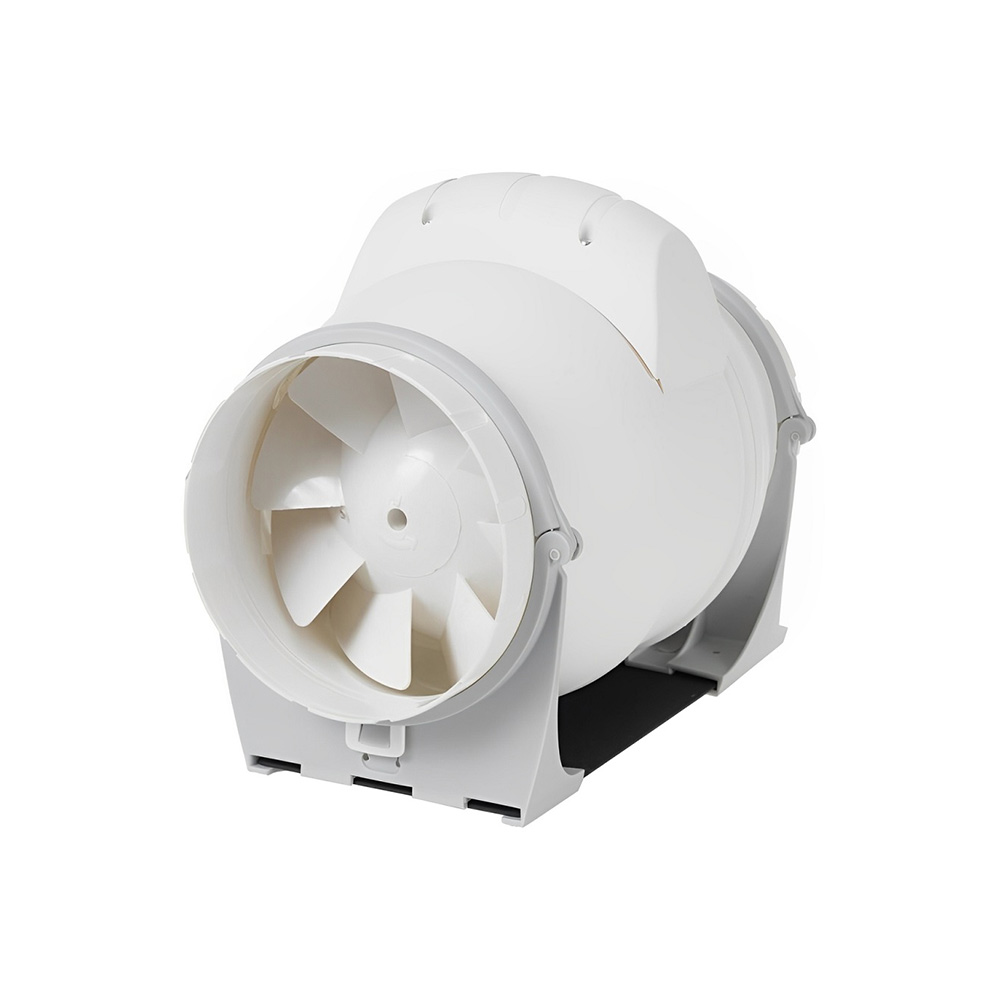

Designed specifically for residential ventilation systems, this inline duct fan combines performance, durability, and energy efficiency. Constructed from durable polypropylene and equipped with a mixed flow impeller, it delivers optimal airflow of up to 300 m³/hr while maintaining quiet operation. The fan features a two-speed motor and built-in thermal overload protection to ensure safe, long-lasting performance. Its low energy consumption makes it an ideal choice for general ventilation in homes. The innovative clamp system allows for fast, hassle-free installation and maintenance. Backed by a 2-year warranty, this fan is a dependable solution for effective and energy-conscious ventilation.
Pre-Order Product: ETA Mid Jun
Elicent AXM Inline Mixflow Features
These high-efficiency in-line duct fans are constructed from durable polypropylene, making them ideal for direct installation within ductwork. A standout feature is the easy-access design, allowing for quick inspection and maintenance by simply loosening the clamps and removing the fan unit—no need to disturb the ducting. Equipped with a helicocentrifugal mixed flow impeller and an ABS downstream stator, the fans deliver quiet, reliable performance.
Optimised aerodynamics and integrated guide vanes further contribute to low noise levels. With an IP44 protection rating and a maximum operating temperature of 40°C, these fans are built for safety and durability. Thermal overload protection comes standard, and an externally mounted terminal box with a cable entry grommet simplifies electrical connections. Speed control can be managed via phase control or a transformer. Installation is straightforward thanks to pre-installed mounting brackets and an external connection box, offering versatile mounting options and minimal energy consumption.
| Manufacturers Part Number | 4AX0002 |
|---|---|
| Colour | White |
| Capacity (m3/hr) | 300 m3/hr |
| Capacity (l/s) | 83.33 l/s |
| Noise Level | 44 dB(A) |
| IP Rating | IP44 |
| Duct Size | 125mm |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
