794m3/hr

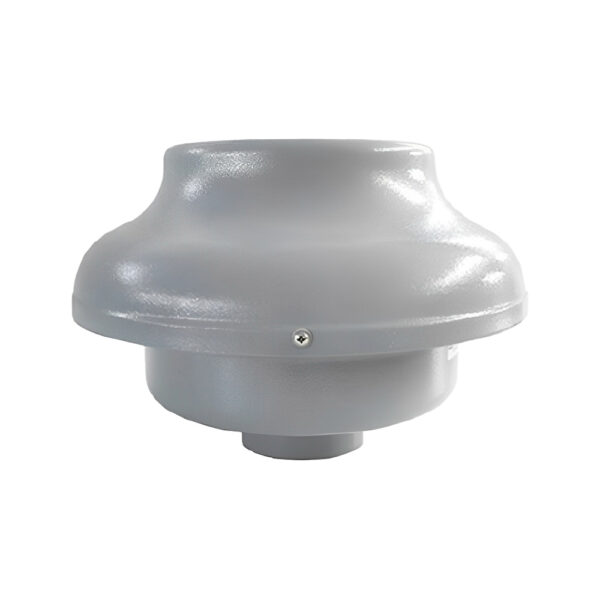

Elicent Mini Roof Centrifugal Fan – 200mm
Original price was: $489.00.$439.00Current price is: $439.00.
A versatile centrifugal roof fan, the Elicent Mini Roof Fan 200 is built for vertical installation and easy mounting directly onto standard PVC plumbing pipes and fittings.
Elicent MRF Data SheetPre-Order Product: ETA Mid Jun
The Elicent Mini Roof Centrifugal Fan, featuring a 200mm duct size, is engineered as a high-performance centrifugal exhaust fan ideally suited for roof installations. Designed for both effectiveness and versatility, this fan achieves a maximum airflow capacity of 794 m3/hr while accommodating a maximum air transfer temperature of up to 60°C. Its adaptability allows for direct mounting onto standard PVC plumbing pipes and fittings, offering a straightforward and economical option for centralised ventilation systems. Constructed from aluminium and steel sheet with an epoxy finish, the fan exhibits elevated resistance to atmospheric agents, thereby ensuring durability and longevity. It is powered by an efficient 85W ball bearing motor and supported by a 2-year replacement warranty (conditions apply).
| Manufacturers Part Number | 2MF2012 |
|---|---|
| Capacity (m3/hr) | 0794 m3/hr |
| Capacity (l/s) | 220.56 l/s |
| Noise Level | 55 dB(A) |
| IP Rating | IPX5 |
| Duct Size | 200mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
Dimensions

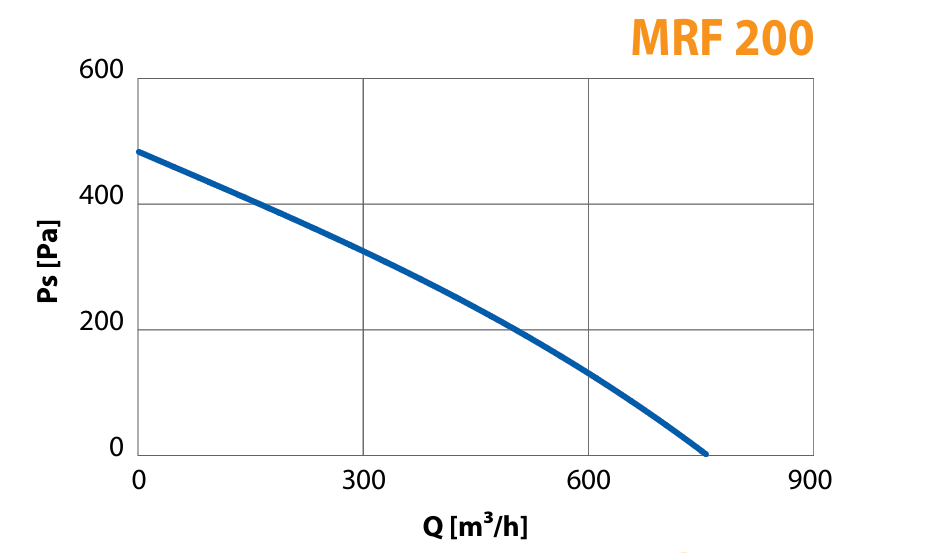

Pressure Curve
