100m3/hr

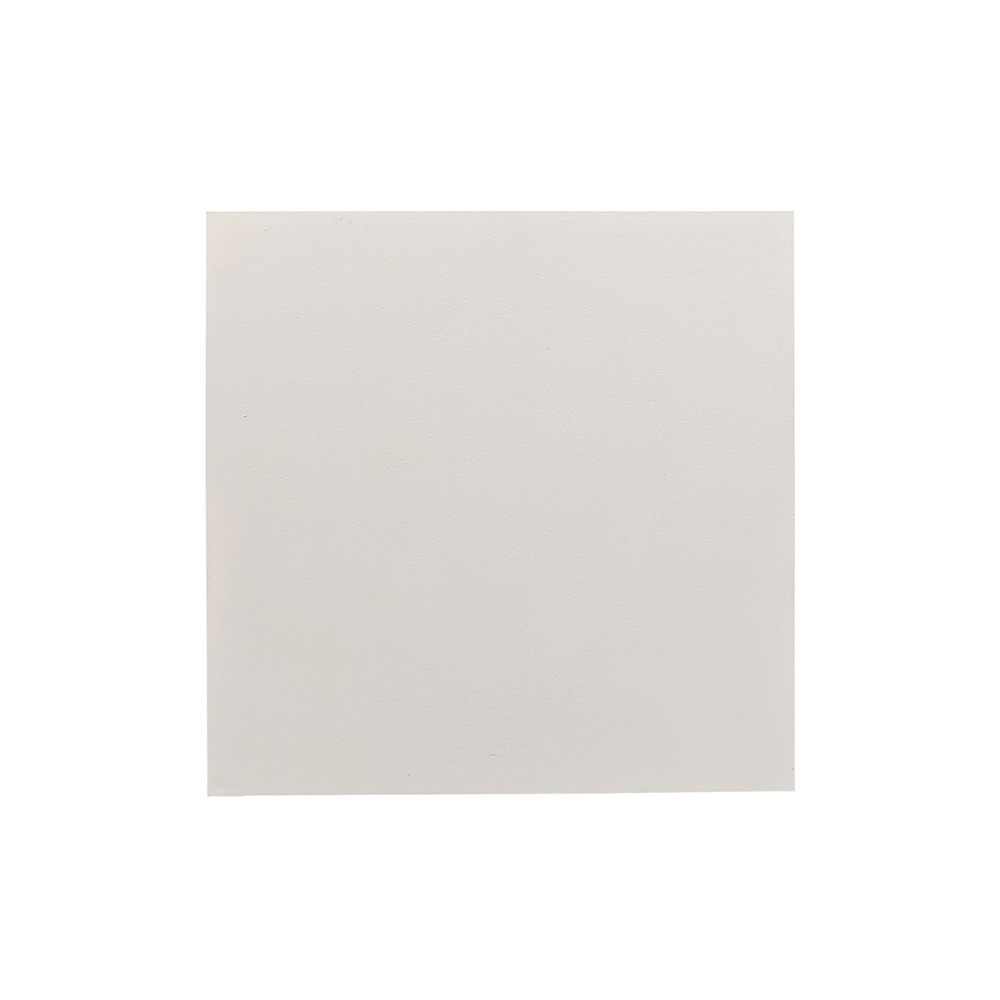

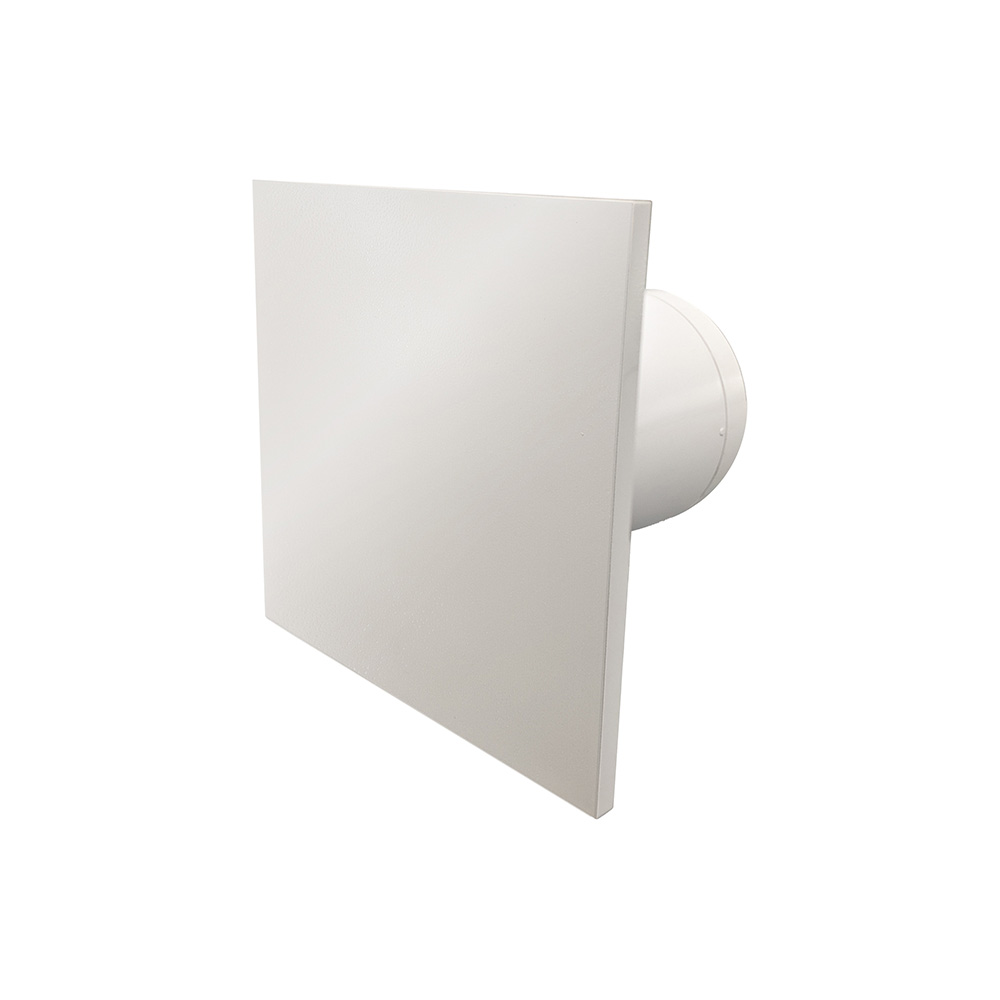

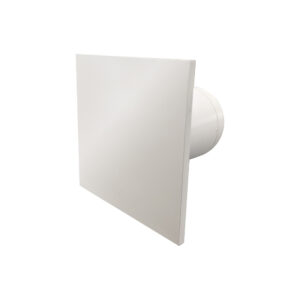

Fanco Dynamic 100 Wall/Ceiling Exhaust Fan – Matte White Cover
Original price was: $109.00.$89.00Current price is: $89.00.
The European-manufactured IP24-rated exhaust fan is a stylish and functional solution for ceiling or wall installations. With superior airflow capability, it features a sleek square cover in a matte white finish. A built-in thin-transparent draft shutter ensures operational efficiency and prevents reverse airflow, and it can be integrated with 100mm duct systems. This fan offers an elegant option for optimal air circulation in various settings.
IN STOCK – Typically dispatches in 1-2 business days
DISCLAIMER: The fan includes a thin, transparent draft shutter (as shown) that is designed to prevent air from flowing back into the ventilated room. However, please be aware that this does not create an airtight seal and is not intended for that purpose. If you’re planning to install it on the ceiling, keep in mind that you’ll need adequate space for running the ducting.
| Manufacturers Part Number | EMVUDY11 + EAVUDYMWH |
|---|---|
| Colour | Matte White |
| Cover Colour | Matte White |
| Capacity (m3/hr) | 100 m3/hr |
| Capacity (l/s) | 27.78 l/s |
| Noise Level | 34 dB(A) |
| IP Rating | IP24 |
| Ceiling Hole Size | ø 100mm |
| Wall Hole Size | ø 100mm |
| Installation Location | Ceiling, Wall |
| Duct Size | 100mm |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

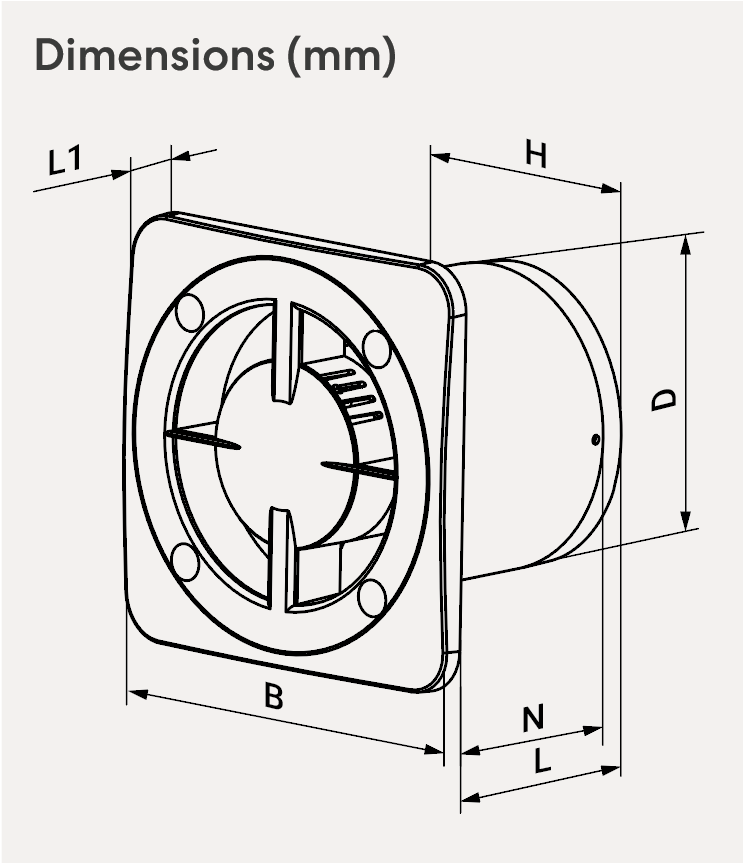

Dimensions
| D | B | H | L | L1 |
| 100mm | 150mm | 120mm | 108mm | 12mm |

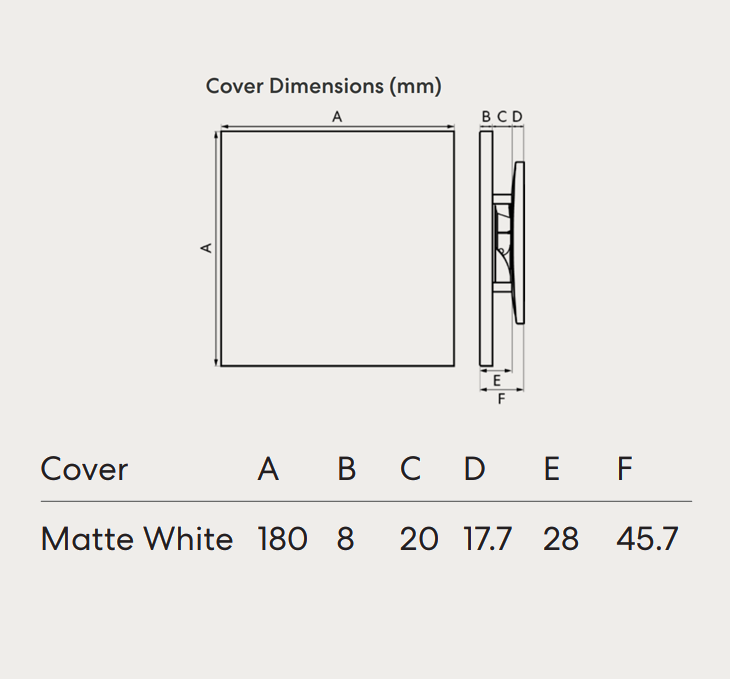

| Cover | A | B | C | D | E | F |
| Matte White | 180 | 8 | 20 | 17.7 | 28 | 45.7 |
| Gloss White | 180 | 8 | 20 | 17.7 | 28 | 45.7 |
| Matte Black | 180 | 8 | 20 | 17.7 | 28 | 45.7 |
| Glass White | 180 | 6.5 | 20 | 17.7 | 26.5 | 44.2 |

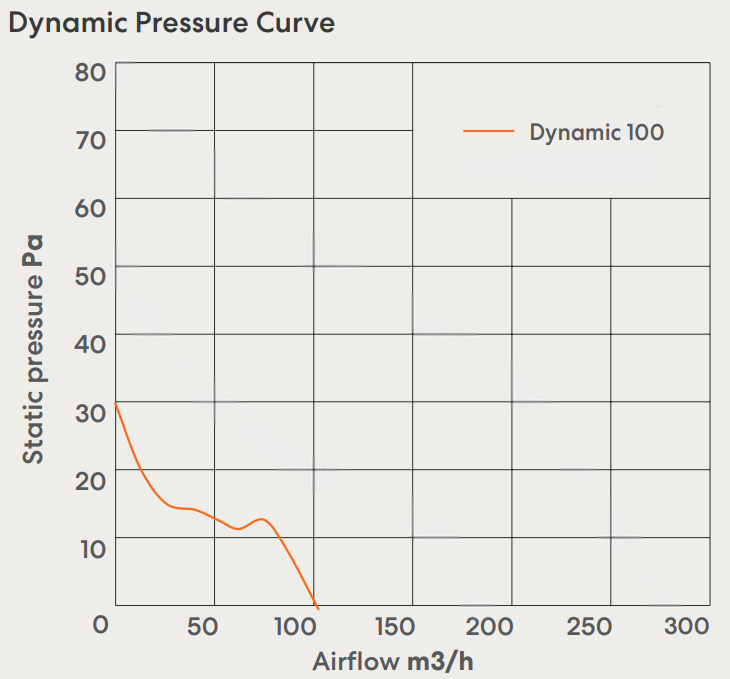

Pressure Curve
