VCN External Wall Mounted Exhaust Fan 200
Original price was: $479.00.$429.00Current price is: $429.00.
This 200 VCN External Centrifugal Fan is designed as an exterior mounted exhaust fan. It can perform well with long lengths of duct and features a German made motor. This external centrifugal fan can be an alternative option in the case that an inline fan cannot be installed due to lack of access, where the performance of an inline is required.
VCN Range Data SheetIN STOCK – Typically dispatches in 1-2 business days
| Manufacturers Part Number | EWVUVCN4 |
|---|---|
| Capacity (m3/hr) | 0710 m3/hr |
| Capacity (l/s) | 197.22 l/s |
| Current | 0.45A |
| Noise Level | 62 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 200mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

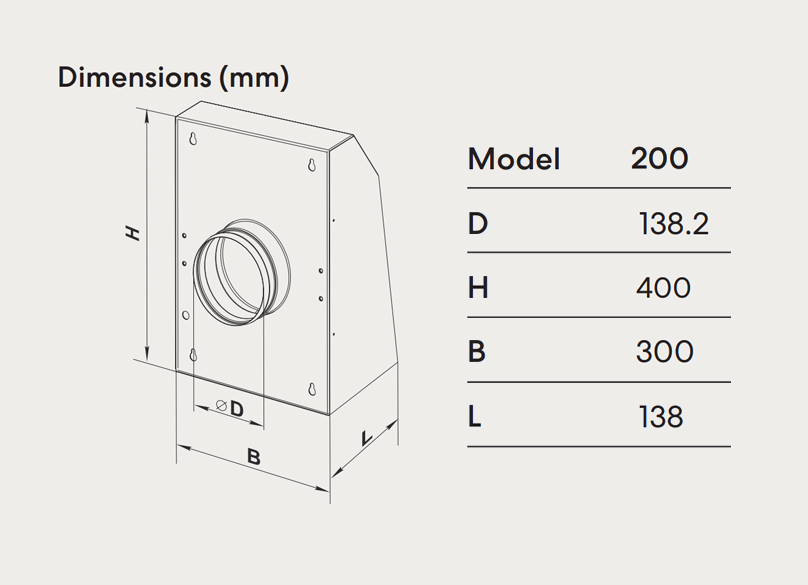

Dimensions
| D | B | H | L |
| 199mm | 300mm | 400mm | 138.2mm |

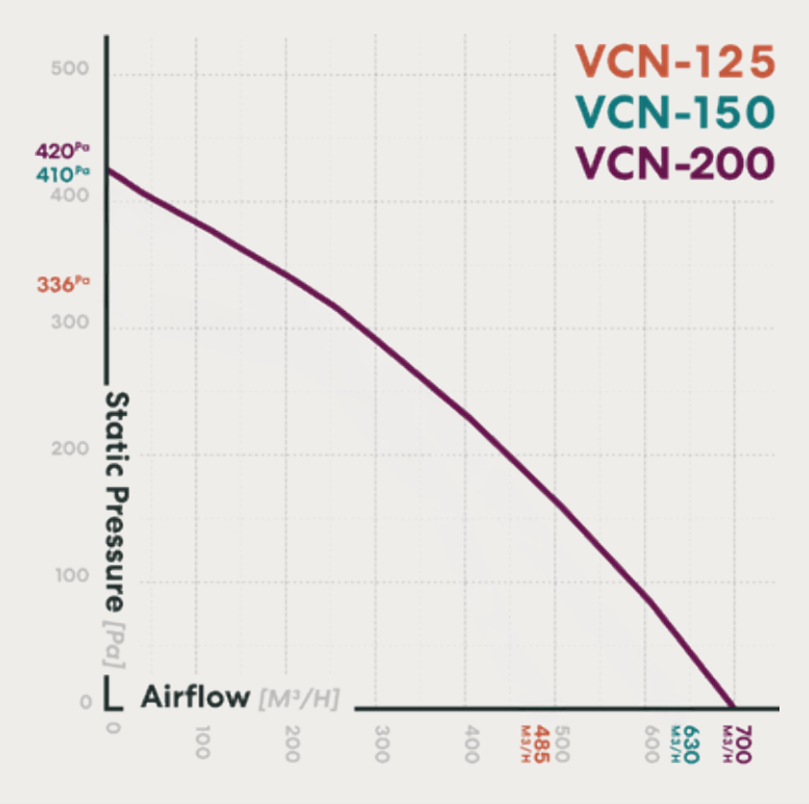

Pressure Curve
