Hunter Pacific Typhoon DC Main Features

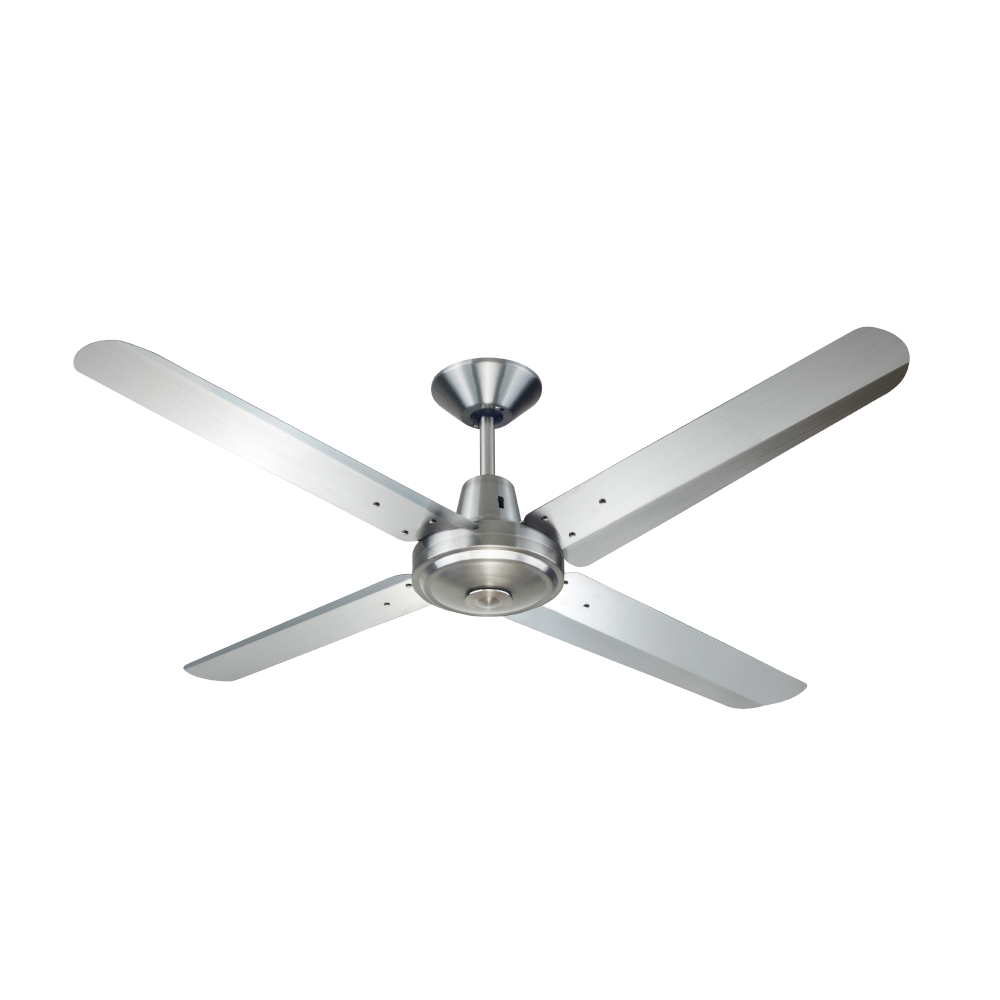

A modern and popular fan with metal blades and steep blade pitch, it can also circulate optimum air volumes with each spin.
Installation Location | Indoor, Outdoor Undercover & Coastal |
---|---|
Blade Material | Metal |
Overall Diameter | 132cm (52″) |
Blade Pitch | 19 Degrees |
Motor Type | AC motor |
Operation | Wall Control |
Summer / Winter use? | Reversible from switch on motor |
Ceiling to Blade Drop | 300mm (370mm to base of motor) |
Angled Ceilings? | Suitable for angled ceilings up to 32 degrees |
Light | Not Included |
Hunter Pacific Typhoon Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 98 | 14 | 7239 m3/hr |
2 | 154 | 30 | 11137 m3/hr |
3 | 208 | 64 | 16345 m3/hr |
Tailor the airflow to your preference, from a gentle breeze to a powerful cooling effect with the 3-speed settings via wall control. The summer/winter mode reverses the blade’s direction promoting air circulation in winter and providing a cooling effect in summer via a switch on the motor.
