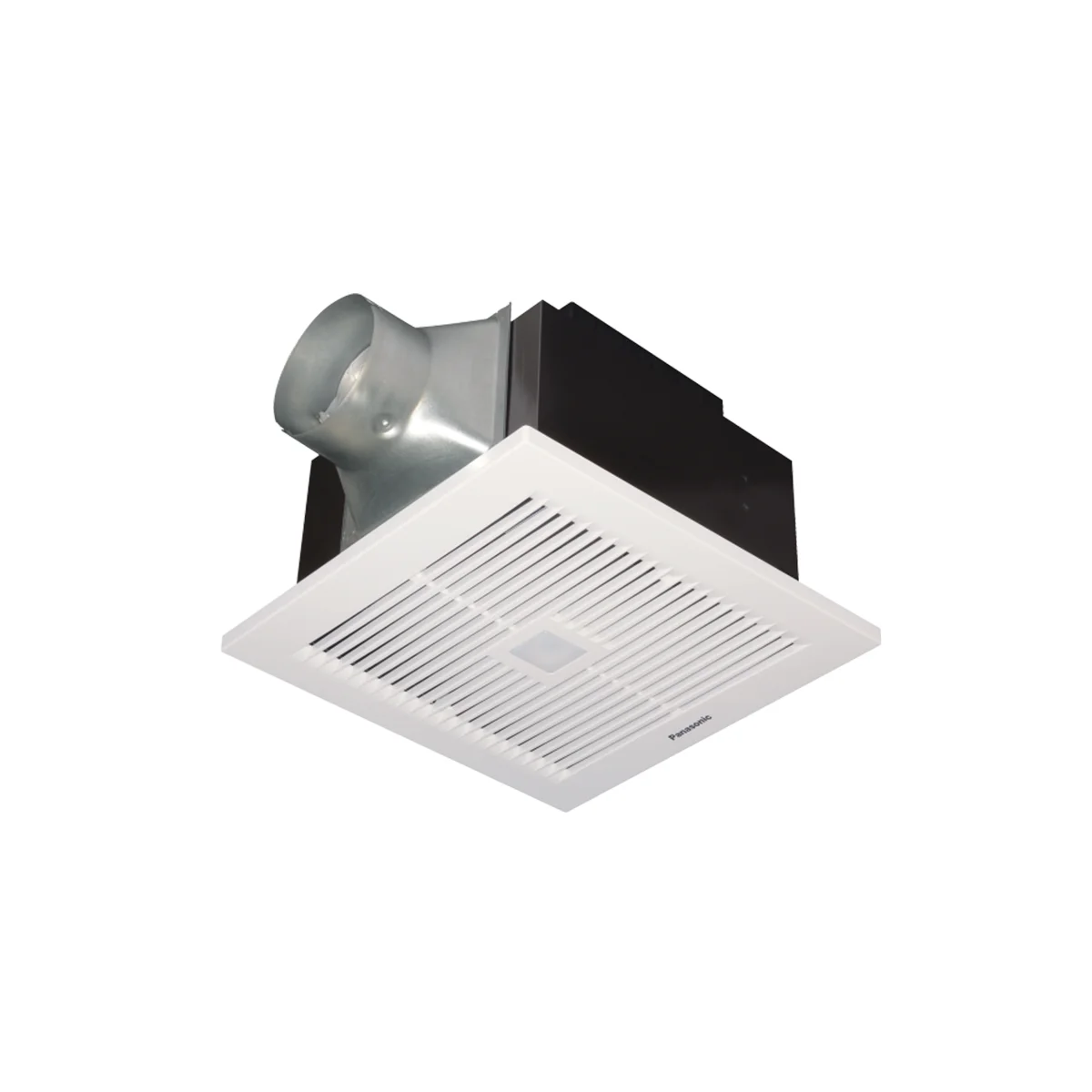

Panasonic 24 Hour DC Ceiling Ventilator Main Features

• High-performance ceiling ventilator for residential and light commercial use. Improved airflow and safety compliance, while retaining its smart features and easy installation.
• Powered by an energy-efficient DC motor, it maintains consistent airflow with constant air volume control and offers a 15-minute run-on timer plus optional 24-hour continuous ventilation for flexible air quality management.

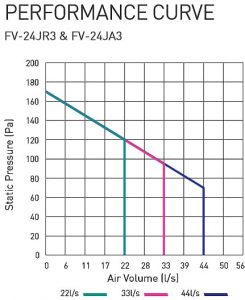

• Offers improved performance with selectable airflow rates of 90, 144, and up to 220 m3/hr (25, 40, and 61 L/s), delivering better alignment with extraction needs and higher capacity for demanding or low-resistance installations.
• Safety has been further refined through the addition of an internal fan guard, designed in accordance with AS/NZS 60335.2.80. This enhancement helps prevent accidental contact with moving components, supporting safer operation without compromising airflow efficiency.
• The integrated motion sensor enables automatic, hands-free operation based on occupancy, improving convenience and energy efficiency.

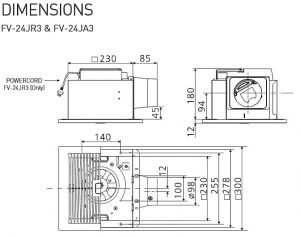

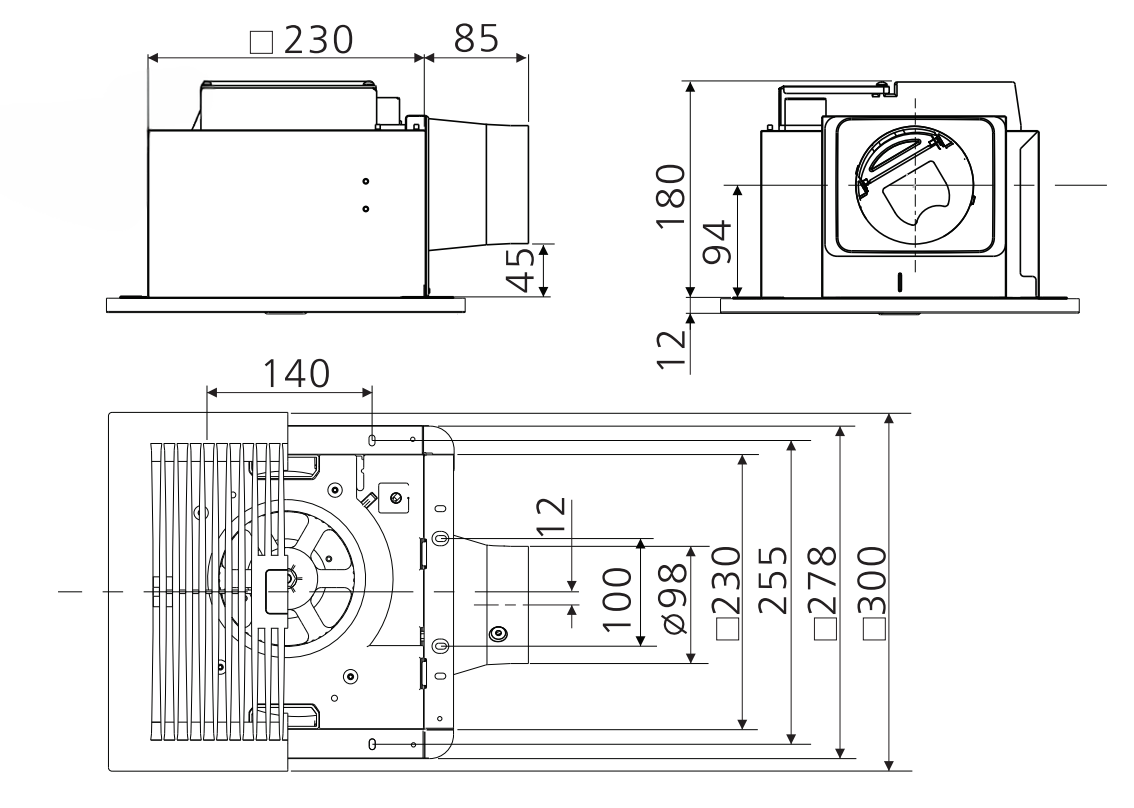

• Installation remains simple and consistent, with a compact ceiling design, 100 mm duct connection, and 230 × 230 mm cut-out—allowing easy upgrades without redesign. Need minimum installation depth of 200 with a fascia size of 300 x 300mm and a motor height of 180mm.
• Combining higher airflow, enhanced safety, and smart automation, the FV-24JR4 delivers a reliable, modern ventilation solution.
