SM Silent Mixflow In Line Fan 200mm with lead & plug

Name: SM Silent Mixflow In Line Fan 200mm with lead &amp; plug
SKU: EXHGHDS200
Price: 349.00 AUD
Availability: InStock

$349.00

This Fanco SM Silent Mixflow 200 inline fan (EXHGHDS200) is a quality inline fan that operates at a reduced noise level in comparison to other inline models on the market in its capacity range. The SM Silent Mixflow 200 has a max capacity of 840 m3/hr and is typically ducted and is usually used for exhaust, air transfer and other applications where mechanical ventilation is required. The fan comes standard on the high speed but can be switched to the low speed by wiring the fan to the low speed terminal (requires electrician).

This fan has not been formally tested for official noise levels.

SKU: EXHGHDS200 Categories: Fanco Exhaust Fans, Inline Fans, Mixed Flow Inline Fans, SM Silent Mixflow In Line Fans

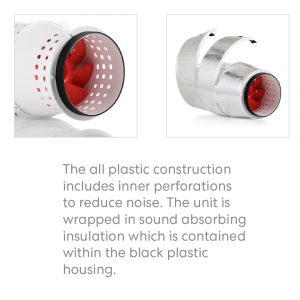

The SM Silent Mixflow In Line is a high quality exhaust fan that operates with reduced noise levels in comparison to models of a similar capacity. The unit is wrapped in sound absorbing insulation which is then contained within plastic housing. This allows for a lower noise level when in use.

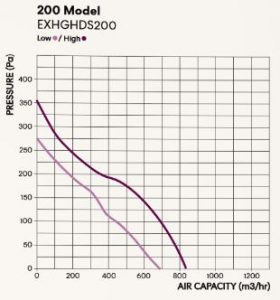

High Speed: 840 m3/hr (233.33 l/s)
Low Speed: 690m3/hr (191.67 l/s)

The fan comes standard on the high speed but can be switched to the low speed by wiring the fan to the low speed terminal (requires electrician).

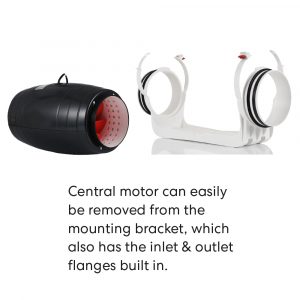

The central motor can be removed from the mounting bracket as shown in the diagram

Please Note: A maximum temperature of transferred air 60°. This inline fan is designed for indoor application with the ambient temperature ranging from +1°C up to 40° C & relative humidity up to 80%..

Manufacturers Part Number	EXHGHDS200
Colour	Black
Capacity (m3/hr)	0840 m3/hr
Capacity (l/s)	233.33 l/s
Current	0.57A
Noise Level	TBC
IP Rating	IP44
Duct Size	200mm
Material	Plastic
Installation	This fan comes with a lead and plug for connection to a powerpoint.
Manufacturer	Fanco
Warranty	1 year replacement warranty
General Exhaust Fan Advice	It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan.
