255m3/hr
Vortice Lineo Mixflow Inline Fan 100
Original price was: $329.00.$289.00Current price is: $289.00.
The Vortice Lineo 100 Mixed Flow Inline Fan is designed for duct mounted ventilation systems that require good pressure, high airflow and minimal noise levels. Constructed from self-extinguishing plastic resin (self-extinguishing capability V0). 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
DISCLAIMER: Sound pressure dB(A) figures displayed below, are calculated in free field conditions at 3m distance.
| Manufacturers Part Number | ALV17144 |
|---|---|
| Colour | White |
| Capacity (m3/hr) | 0255 m3/hr |
| Capacity (l/s) | 70.8 l/s |
| Noise Level | 39.4 dB(A) |
| IP Rating | IP44 |
| Duct Size | 100mm |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Vortice |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

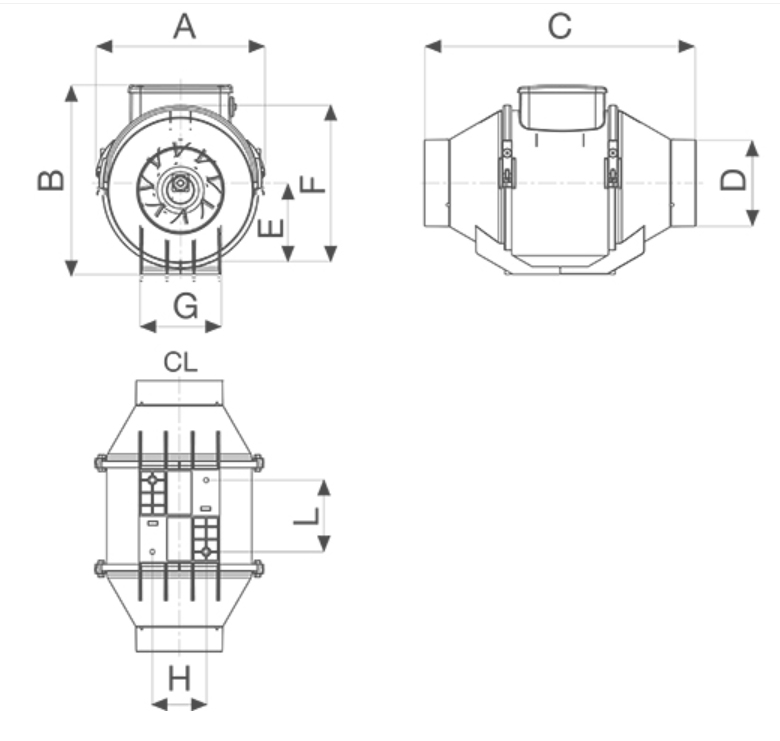

Dimensions
| A | B | C | D | E | F | G | H | L | M |
| 188.5mm | 211mm | 303mm | 96mm | 101.5mm | 189mm | 90mm | 60mm | 80mm | 5.5mm |
