About the Vortice Lineo Quiet ES 100

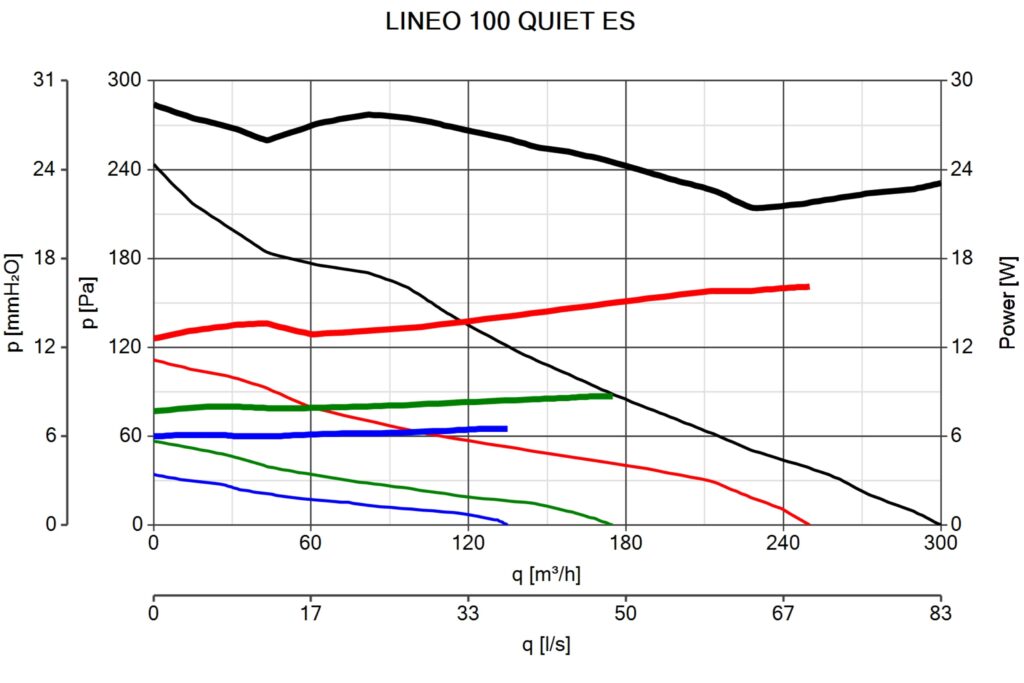

Capacity: 300 m3/hr (83.3 l/s)
Motor Type: EC Mixflow
Ductable: Yes (100mm duct diameter)
Enclosures constructed from plastic resin with fire-resistant properties, E2 class, according to ISO EN 11925-2: 2010, in areas close to the motor and electrical components.
Casing is coated that absorbs sound, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
High-quality EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
High water resistance: IPX5 (if installed in a duct).
Designed with a thermal fuse that prevents overheating
Ultra energy efficiency, consuming a mere 23 watts while maintaining a powerful airflow rating of 300 m3/hr even when set to maximum speed.
Note – Electrician required for all 3 options:
Recommended to wire the fan conventionally for single-speed operation.
Configure the motor to operate at a dual speed (you can specify the high and low speed) and install a standard position switch to enable switching between high and low.
Wire it to a potentiometer (accessory noted below) to have greater control like a dimmer switch
