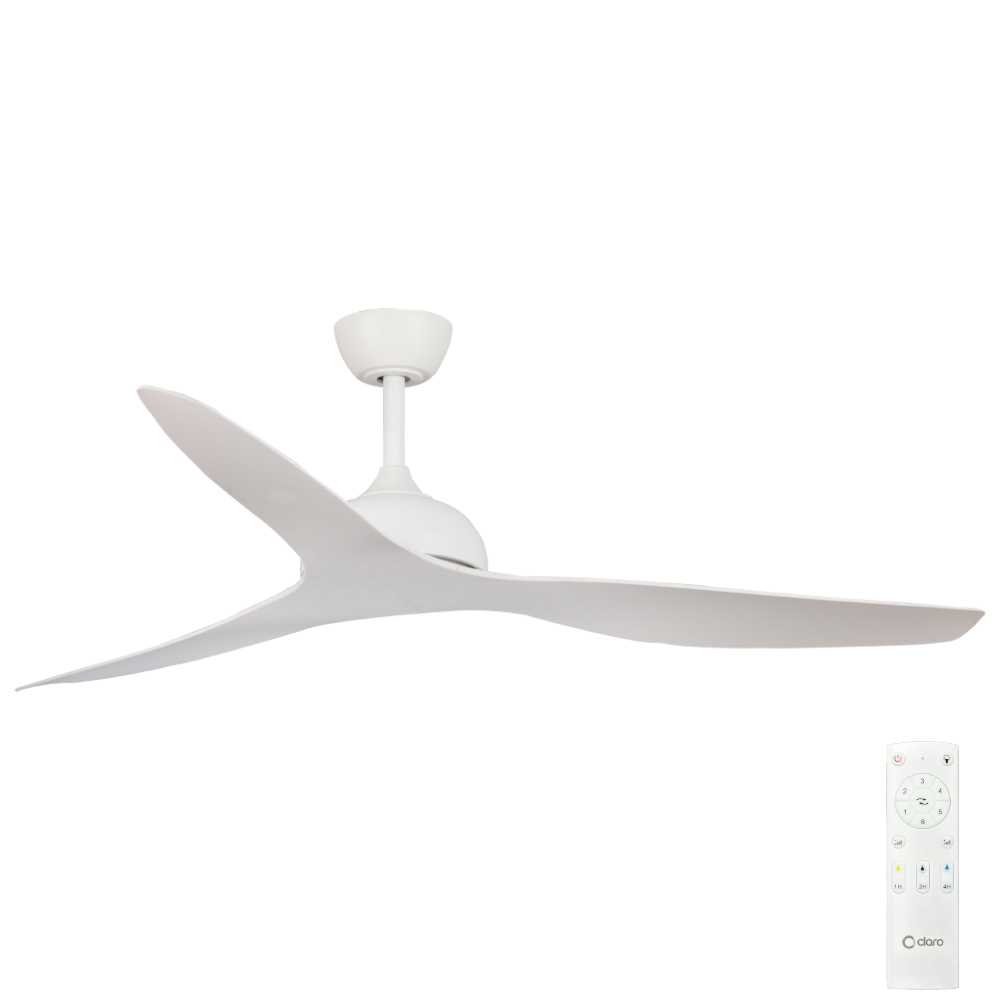

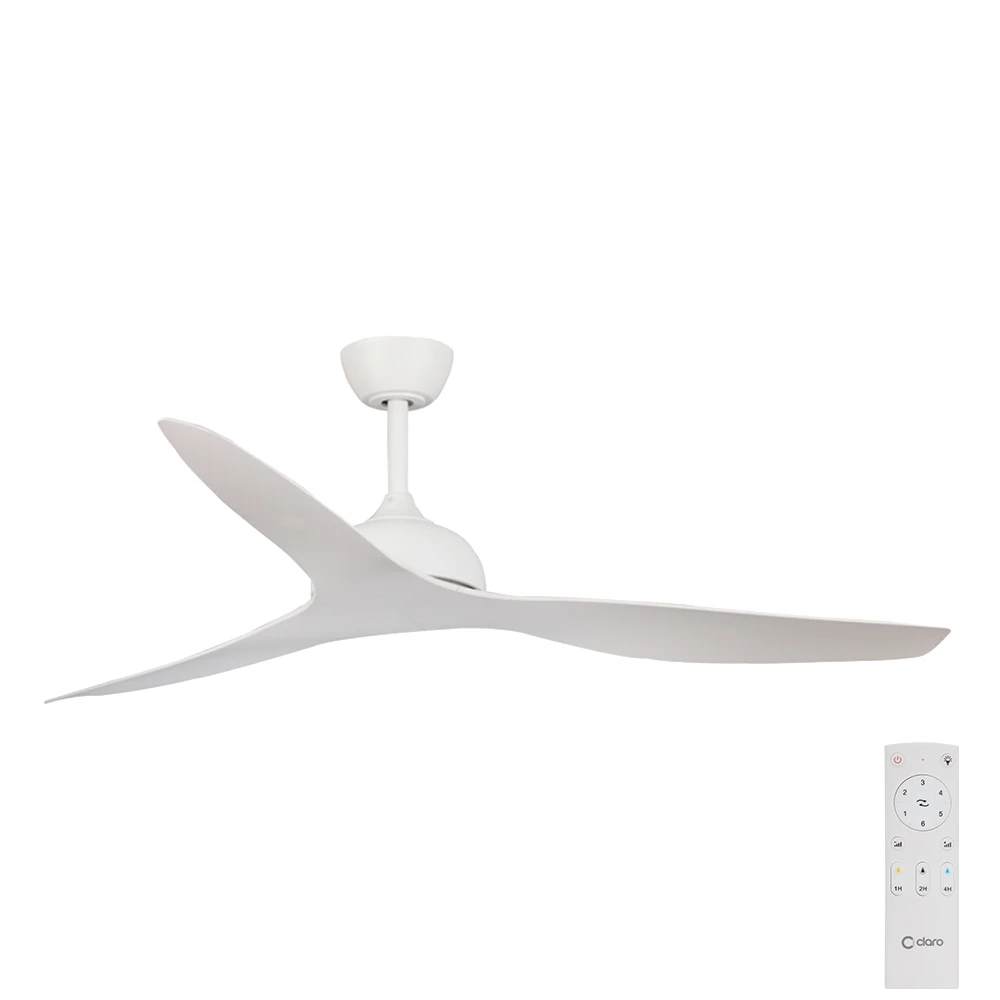

Claro Whisper DC Main Features
The Whisper comes with an energy-efficient DC motor and has 6-speed settings to choose from, and can be reversed for summer or winter use via a switch on the remote.
Installation Location | Indoor & Outdoor Undercover |
---|---|
Blade Material | Plastic |
Overall Diameter | 147cm (58″) |
Blade Pitch | 12 Degrees |
Motor Type | DC motor |
Operation | Remote Control |
Summer / Winter use? | Reversible from remote |
Ceiling to Blade Drop | 295mm |
Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
Light | Not Included |
Claro Whisper Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 56 | 2.2 | 3748 m3/hr |
2 | 92 | 4.5 | 7500 m3/hr |
3 | 115 | 7.5 | 8356 m3/hr |
4 | 140 | 11.5 | 10850 m3/hr |
5 | 165 | 18 | 11890 m3/hr |
6 | 198 | 32 | 13056 m3/hr |
The fan also includes two separate rods in the box (125mm and 250mm long), so that you have the option of a longer rod that is perfect for higher than average ceilings. (All measurements are based on using the 125mm rod). If installed outdoors this fan must be an enclosed outdoor area min 1.5m from edge of eave/roof, fully shielded from wind, rain & direct sunlight.
