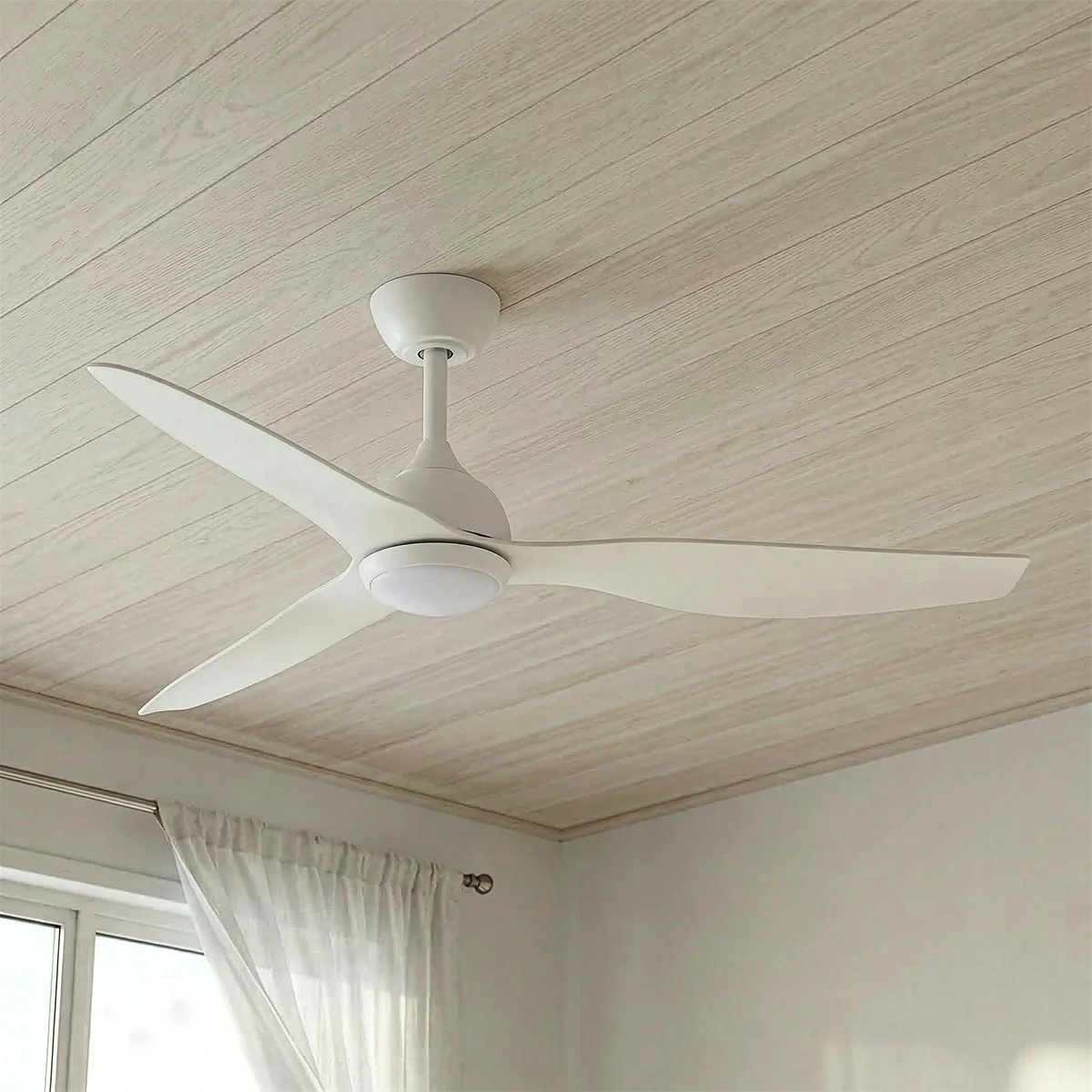

Fanco Eco Style DC Main Features
With a diameter of 132 cm (52 inches) and a 15-degree blade pitch, this fan efficiently cools small to medium-sized rooms.
Installation Location | Indoor, Outdoor Undercover |
---|---|
Blade Material | Plastic |
Overall Diameter | 132cm (52″) |
Blade Pitch | 15 Degrees |
Motor Type | DC motor |
Operation | Remote Control |
Summer / Winter use? | Reversible from remote |
Ceiling to Blade Drop | 295mm (330mm to base of light) |
Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
Light | Included |
Fanco Eco Style Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 75 | 3.8 | 5010 m3/hr |
2 | 125 | 9.5 | 7860 m3/hr |
3 | 140 | 14 | 8250 m3/hr |
4 | 160 | 18.5 | 8950 m3/hr |
5 | 170 | 24 | 9378 m3/hr |
6 | 190 | 33 | 9641 m3/hr |
The fan boasts a wide range of speeds, achieving 9,641 m³/hr on the highest setting.
About the Fanco Eco Style Light
Light Type | LED |
---|---|
Light Wattage | 18 |
Lumens | 1408lm, 1501lm or 1474lm |
Light Temperature | 3000k, 4000k or 5000k |
Dimmable | Yes |
This light kit features CCT Technology. This means that you are able to select your preferred light temperature.
Please note: This fan includes two extension rods (125mm long and 250mm long). The ceiling to blade drop of 295mm is achieved by using the smaller (125mm) rod.
