Fanco Eco Style DC Main Features
With a diameter of 132 cm (52 inches) and a 12-degree blade pitch, this fan efficiently cools small to medium-sized rooms.
| Installation Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |

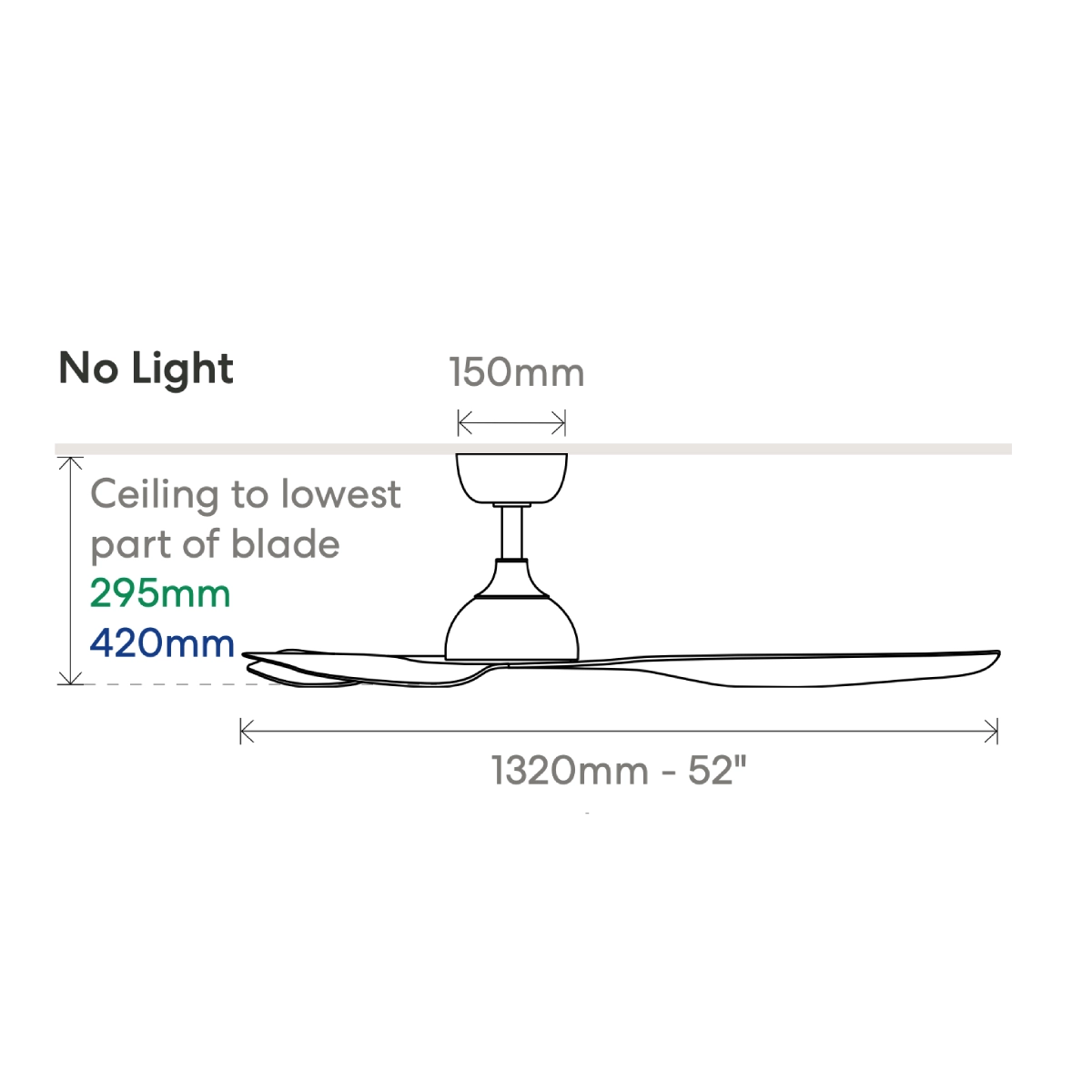

| Ceiling to Blade Drop | 294mm (271mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light | Not Included |
Fanco Eco Style Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 62 | 1.3 | 3,249 m3/hr |
| 2 | 87 | 2.6 | 5,246 m3/hr |
| 3 | 111 | 4.8 | 5,781 m3/hr |
| 4 | 137 | 8.1 | 6,884 m3/hr |
| 5 | 178 | 18 | 8,807 m3/hr |
| 6 | 200 | 30 | 9,448 m3/hr |
The fan boasts a wide range of speeds, achieving 9,448 m3/hr on the highest setting.
Please note: This fan includes two extension rods (127mm long and 254mm long). The ceiling-to-blade drop of 294mm is achieved by using the smaller (127mm) rod.
