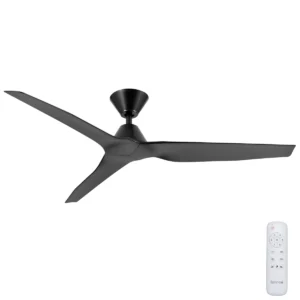

Fanco Infinity-iD Key Features

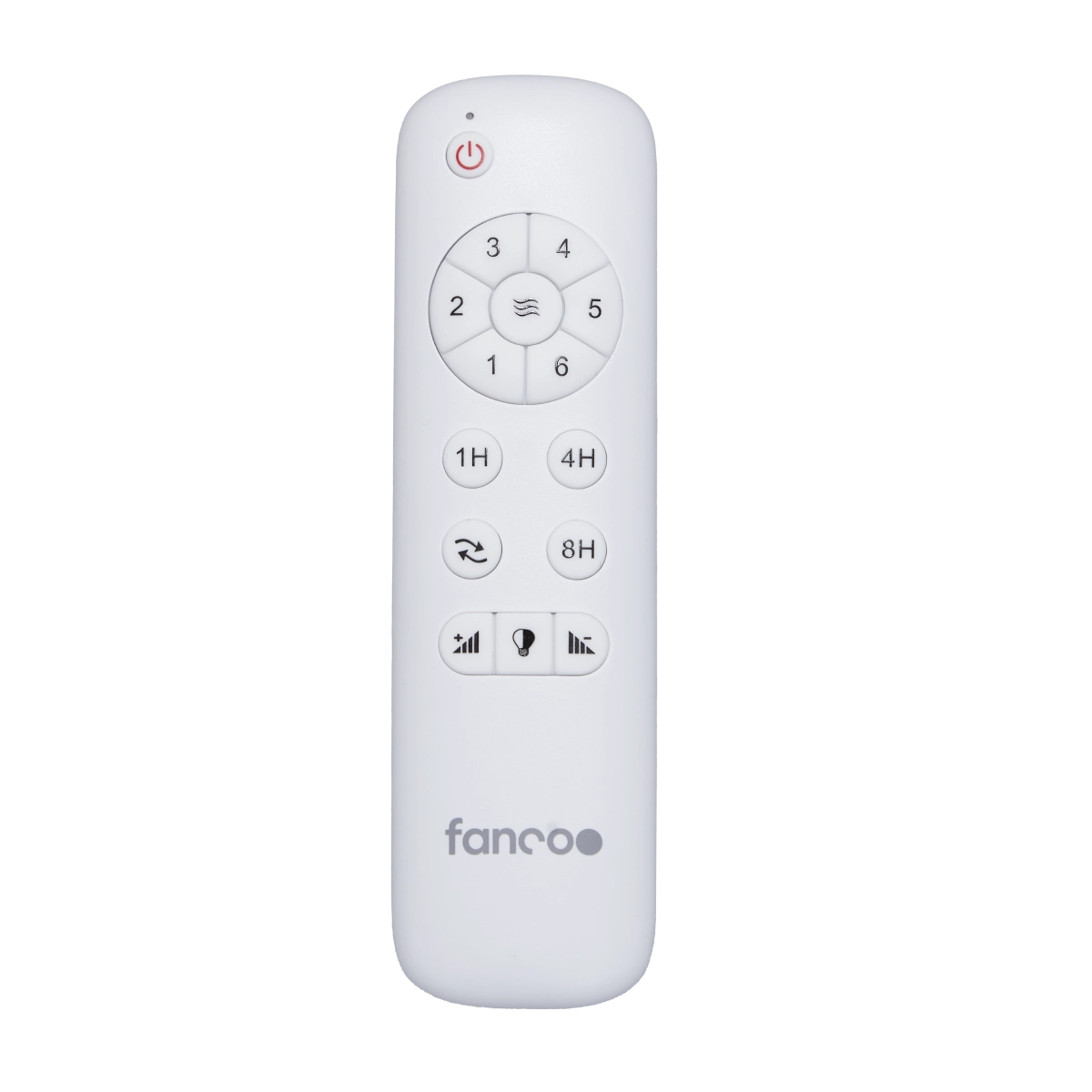

It has ABS plastic blades that are lightweight, UV-resistant, and corrosion-resistant. The controls offer a convenient way to adjust your fan’s settings from a distance. With its user-friendly interface, you can easily control the fan’s speed, light control and set a timer for automatic shut-off (1H—9H).
Installation Location | Indoor, Outdoor Undercover & Coastal |
---|---|
Blade Material | Plastic |
Overall Diameter | 137cm (54″) |
Blade Pitch | 13 Degrees |
Motor Type | DC motor |
Operation | Remote Control & Smart Control |
Summer / Winter use? | Reversible from remote & SMART control |
Ceiling to Blade Drop | 270mm (295mm to base of motor) |
Angled Ceilings? | Suitable for angled ceilings up to 7 degrees |
Light | Not Included |
Fanco Infinity-iD Performance Data
Speed | RPM | Wattage | Airflow |
---|---|---|---|
1 | 60 | 3.4 | 3,420 m3/hr |
2 | 88 | 4.6 | 4,644 m3/hr |
3 | 116 | 6.8 | 6,049 m3/hr |
4 | 145 | 10 | 7,021 m3/hr |
5 | 174 | 15.2 | 8,641 m3/hr |
6 | 200 | 22.5 | 10,801 m3/hr |
Tailor the airflow to your preference, from a gentle breeze to a powerful cooling effect with the 6-speed settings. The summer/winter mode reverses the blade’s direction, promoting air circulation in winter and providing a cooling effect in summer.
Want to know more about how the SMART app works? Visit the Fanco website or click here Fanco SMART Manual.
Please note: Enclosed Outdoors: Products installed at least 1.5m from the perimeter of the roof/eaves of the enclosure (to protect the product from direct or indirect rainwater or sunlight). This model utilises a DC motor. However, it has an internal converter and is, therefore, compatible with normal AC electrical systems. It cannot be connected directly to a DC power source. The fan and components must be installed by qualified persons.
Justin –
Brilliant fans, integrated into my home automation system perfectly, they have a very small noise on the lowest setting if I had to pick on something but very minor. Overall very happy
Sonia –
assembly was difficult but great once installed
