Fanco Sanctuary DC Main Features
The Fanco Sanctuary features anti-corrosive metal components paired with solid timber blades finished with a protective sealer, ensuring reliable performance in both outdoor and coastal conditions. Multiple timer settings: Choose between 1, 4, or 8 hours.
Note: Solid timber is a natural material, so each set of blades may vary slightly. This can result in minor differences in performance specifications.
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Timber |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC motor |

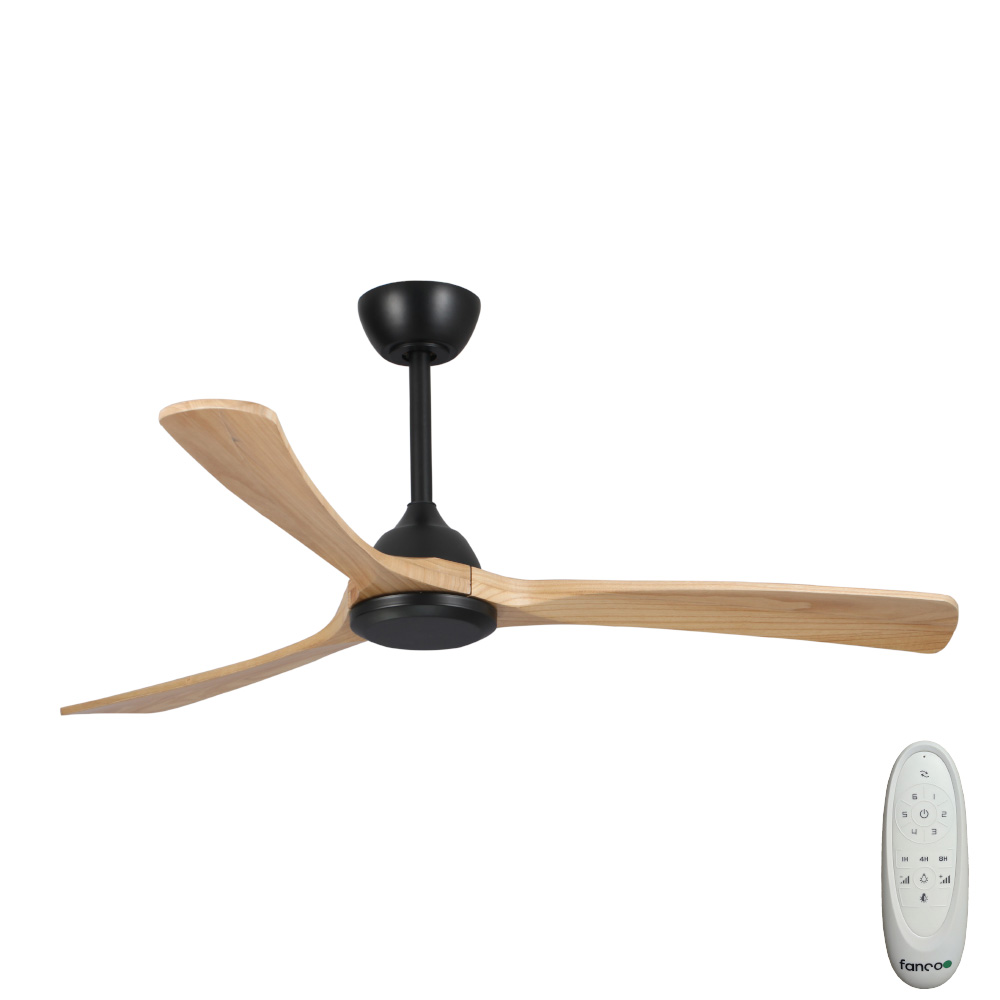

| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 277mm (300mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light | Not Included |
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 1.7 | 3556 m3/hr |
| 2 | 86 | 3.3 | 4499 m3/hr |
| 3 | 112 | 6.2 | 5939 m3/hr |
| 4 | 137 | 11.2 | 6809 m3/hr |
| 5 | 162 | 19.3 | 7878 m3/hr |
| 6 | 182 | 29.2 | 9037 m3/hr |
Equipped with a convenient remote-controlled reversible setting, the fan ensures reliable airflow performance of 9,037 m3/hr at max speed.
