510m3/hr

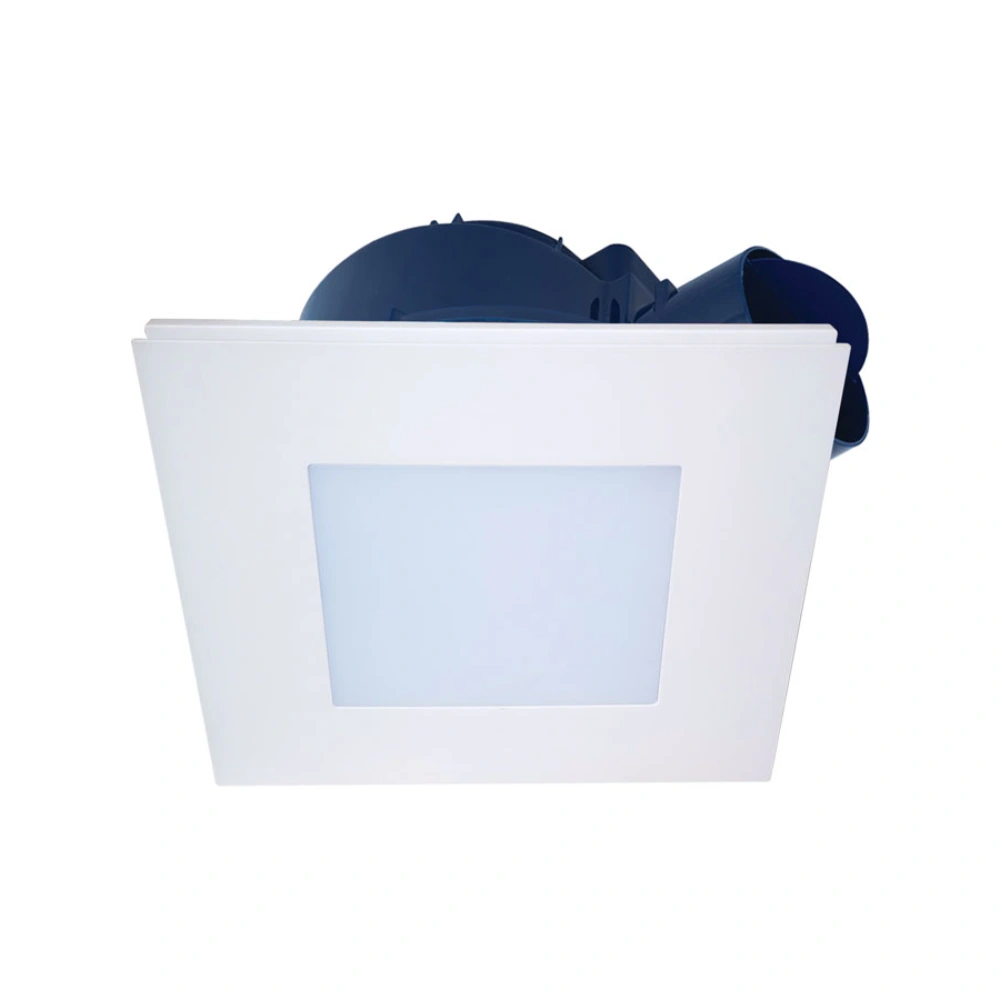

Ventair Airbus EC 500 Square Ceiling Exhaust Fan with CCT LED and Wall Control
$399.00
Upgrade your home’s air quality with the Ventair Airbus EC 500 Square, a premium ceiling exhaust unit designed to provide continuous and efficient ventilation for your home. This model comes with a 14w tri-colour LED with a brightness of 1600 lumens. With its eco-friendly design, this exhaust fan is an ideal choice for silently removing stale air and odours. It features an energy-efficient EC motor and is backed by a five-year warranty. Additionally, It comes with a wireless wall control that can select boost, run and 24/7 modes.
Ventair Airbus EC 500 Square Features
It offers continuous operation, promoting a healthier environment. Its primary purpose is to replace stale or moist air with fresh air. This efficiency is achieved through it’s EC motor, resulting in minimal operating expenses for extended use, at just $1 per month in operating costs*. Additionally, the product emits very low noise levels, further enhancing its reliability.
- High-level air extraction
- Included 10w light with warm, natural and cool colour temperatures
- 3 modes (boost, run, 24/7) with different speed settings
- Max 44 dB(A) noise level
- Wireless wall controller included
- Super low profile
- 5 year warranty
*Actual figures may vary based on factors such as speed, installation location, and variations in energy retailers
| Manufacturer | Ventair |
|---|---|
| Manufacturers Part Number | PVPXEC500SQ-LED |
| Colour | White |
| Capacity (m3/hr) | 0510 m3/hr |
| Capacity (l/s) | 141.67 l/s |
| Noise Level | 44 dB(A) |
| IP Rating | IPX4 |
| Ceiling Hole Size | 300mm |
| Duct Size | 150mm |
| Material | Plastic |
| Installation | This fan comes with a lead and plug for connection to a powerpoint. |
| Warranty | Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |
Modes
| Mode | Power (W) | Noise level dB(A) | Airflow (m3/hr) |
|---|---|---|---|
| 24/7 | 3 | 21 | 70 |
| Run | 35 | 40 | 380 |
| Boost | 80 | 44 | 510 |
24/7 – Continuous trickle extraction
Run – 20 minutes for balanced performance, then back to 24/7
Boost – 10 minutes rapid steam/odour removal, then back to 24/7
Dimensions
Pressure Curve
AIR QUALITY
