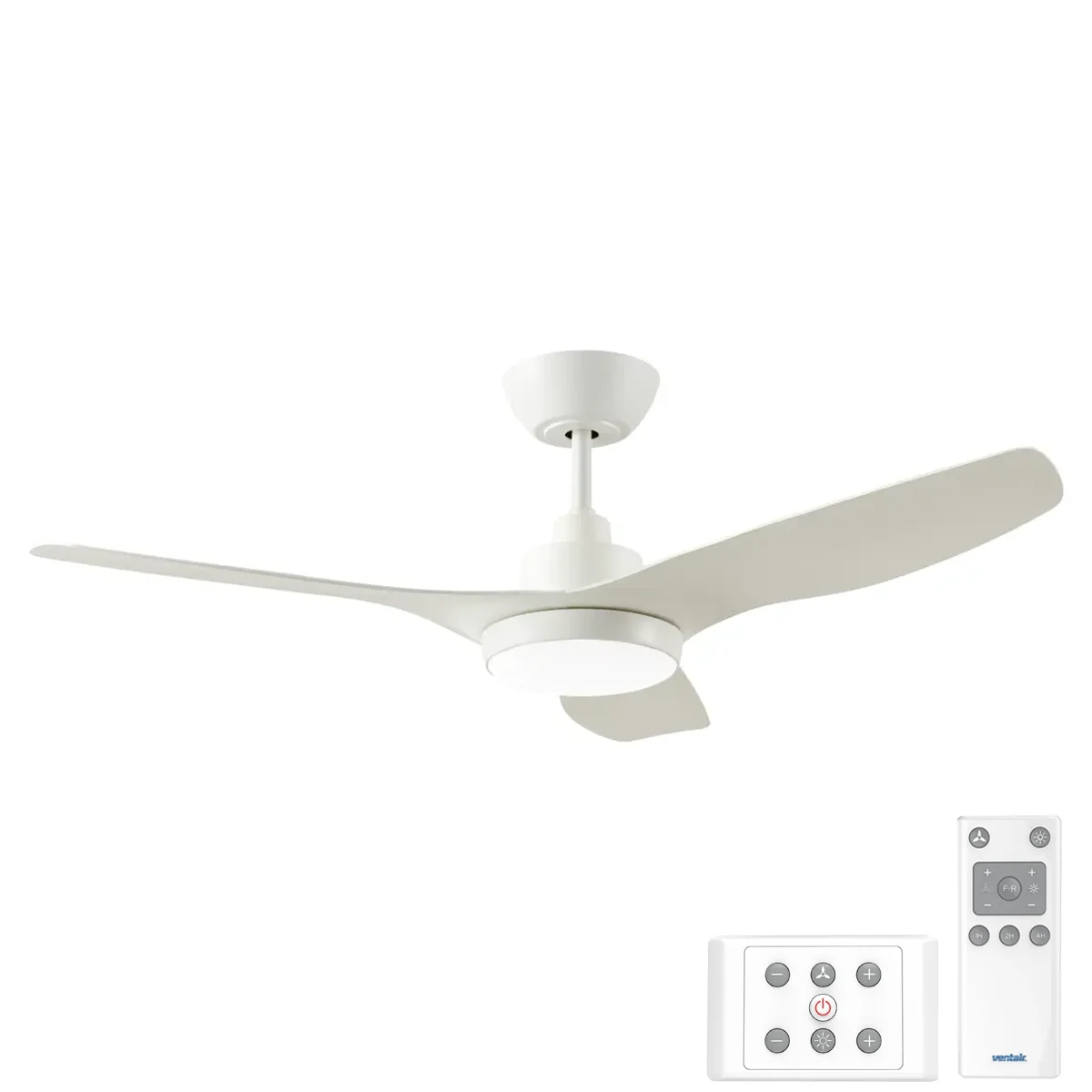

Ventair DC 3 Ceiling Fan with CCT LED Light, Remote & Wall Control – White 48″
$315.00
The Ventair DC 3-Blade ceiling fan represents a sophisticated intersection of aerodynamic engineering and energy-efficient lighting, making it a premier specification for modern residential and commercial interiors. At its core, the system utilises high-grade DC motor technology that achieves up to 75% reduction in power consumption compared to standard AC alternatives, without compromising on volumetric performance. The 1200mm (48″) blades are constructed from a fully moulded glass-fibre composite, featuring a “Dynamic Curve” profile designed to optimise laminar flow and minimise turbulence. For the lighting component, the integrated 20W LED module delivers a high-output 1500-lumen field with specialised Tri-colour technology, allowing for seamless transitions between warm, natural, and cool colour temperatures. This ensures the fixture can be tuned to complement specific architectural finishes and interior palettes.
IN STOCK – Typically dispatches within 3 business days.
Secure
Checkout
Checkout
4.9 Google
Shop Rating
Shop Rating
Fast + Free
Shipping*
Shipping*
Save Time with our Installation Service.
Use the link on your order confirmation to book your install date.
Click here for more details
Ventair DC3 Ceiling Fan Key Features

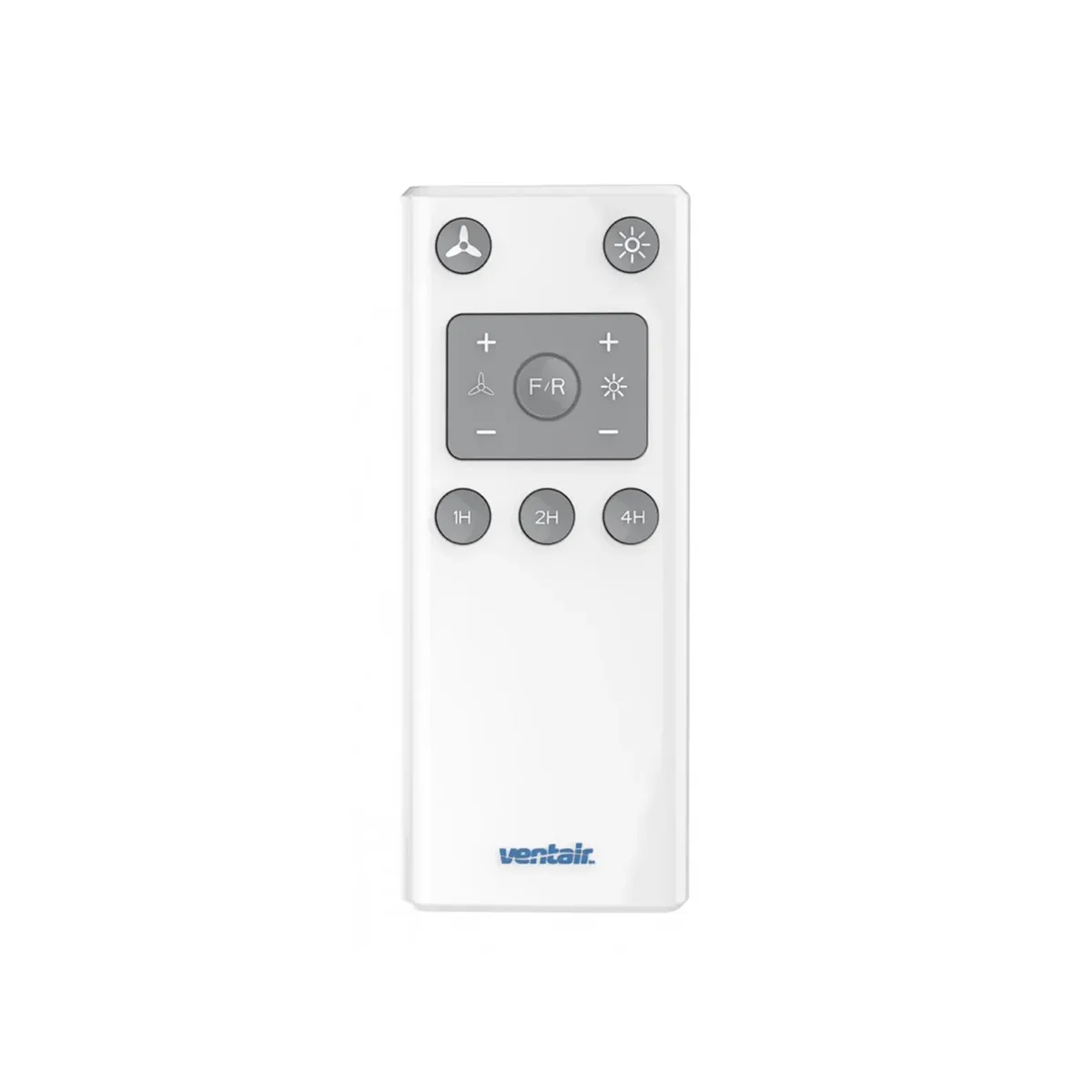

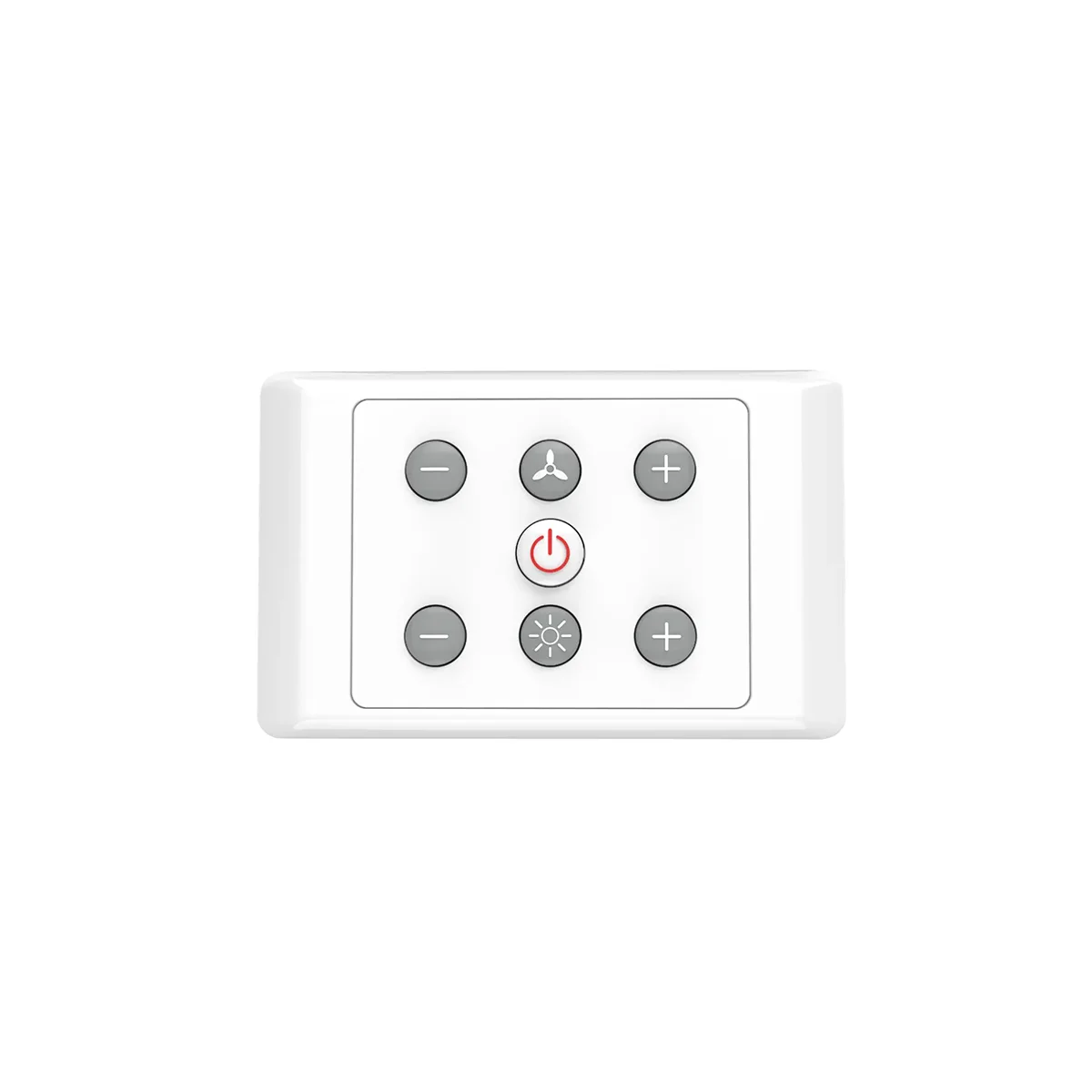

The remote and wall controller include intelligent features for enhanced comfort and efficiency: Eco Mode for reduced energy use, Sleep Mode for gradual speed reduction overnight, and a 1–12 hour timer for automatic shut-off. Its integrated LED light offers five-step dimming and Tri-Colour options (warm white, cool white, and natural white) to suit any environment.
| Installation Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | Glass Fibre Composite |
| Overall Diameter | 122cm (48″) |
| Blade Pitch | Dynamic Curve |
| Motor Type | DC motor |
| Control Type | Wall Control | Remote Control |
| Summer and Winter use? | Reversible from wall control & remote control |
| Ceiling to Blade Measurement | 300mm (366mm to base of light) |
| Angled Ceiling Suitability | Suitable for angled ceilings up to 15 degrees |
| Light | Included |
Ventair DC3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 72 | 2.2 | Not Tested |
| 2 | 110 | 5 | Not Tested |
| 3 | 147 | 9 | Not Tested |
| 4 | 175 | 15 | Not Tested |
| 5 | 214 | 26 | 13,580 m3/hr |
Delivers powerful yet efficient airflow, driven by a precision DC motor and Dynamic Curve glass-fibre blades. It moves high volumes of air quietly and effectively, making it ideal for residential or covered outdoor spaces. Designed for energy efficiency and year-round comfort, the DC3 offers reliable performance suited to both professional specifications and discerning home applications.
All about the Ventair DC3 Light
| Light Type | LED |
|---|---|
| Light Wattage | 20W |
| Lumens | 1800lm |
| Light Temperature | 3000k, 4200k or 6500k |
| Dimmable | Yes |
What is CCT? CCT stands for colour changing technology which means that this light kit has the ability for the user to select their preferred colour temperature.
| Brand | Ventair |
|---|---|
| Manufacturers Part Number | DC31203WH-L + DC3WCM |
| Overall Diameter | 48" (1220mm) |
| Control | Remote Control, Wall Control |
| Motor Type | DC |
| Blade Material | Plastic |
| Motor Colour | White |
| Blade Colour | White |
| Number of Blades | 3 |
| Light Option | Included |
| Dimmable | Yes |
| Max Ceiling Angle | 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10°, 11°, 12°, 13°, 14°, 15° |

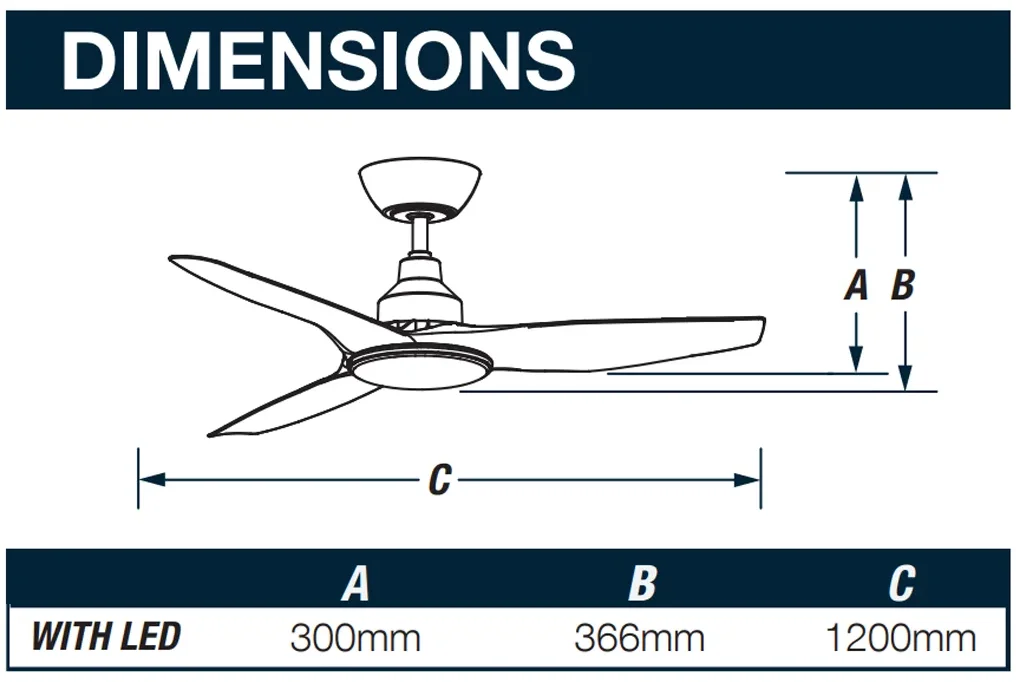

Dimensions
