Aeratron FR3 DC Main Features

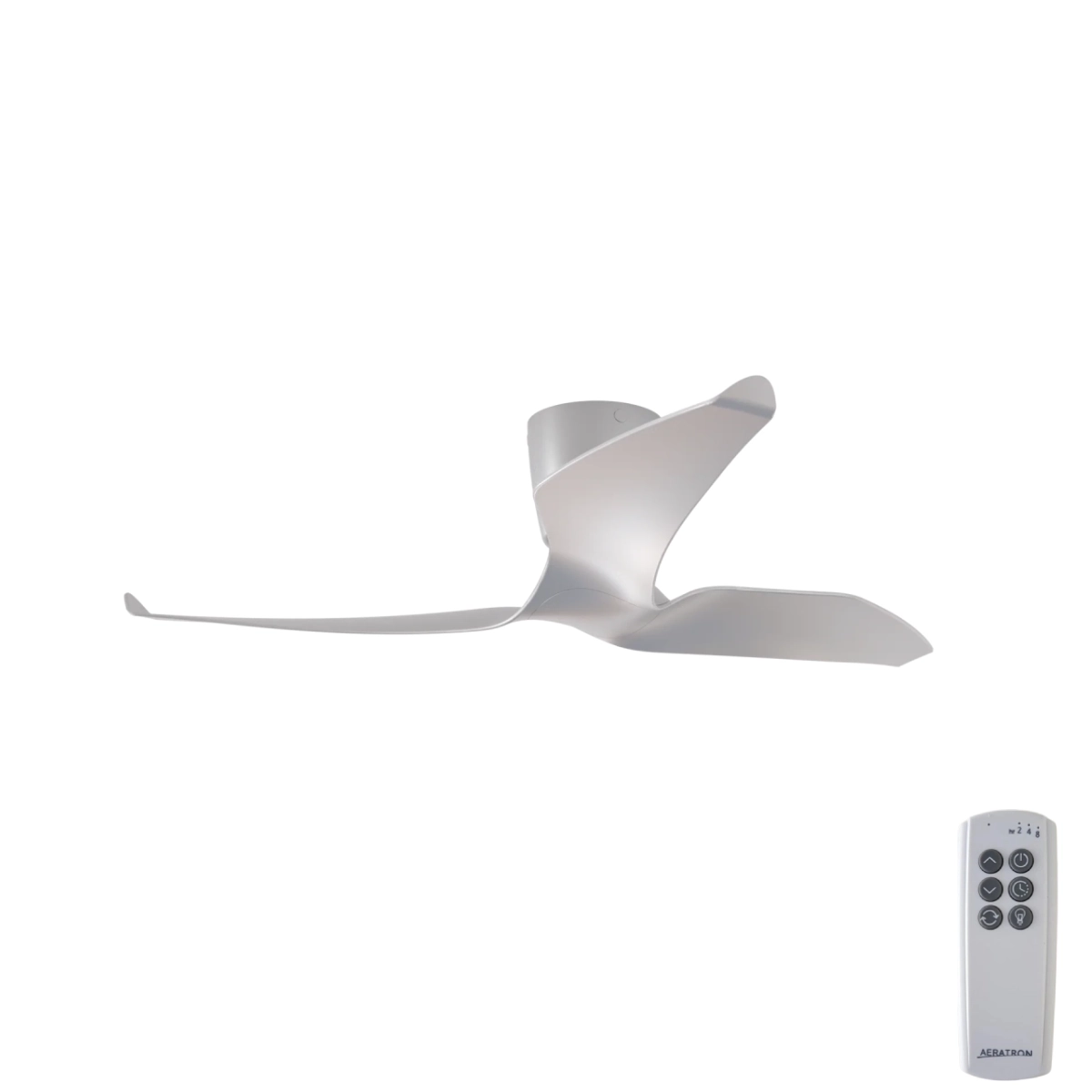

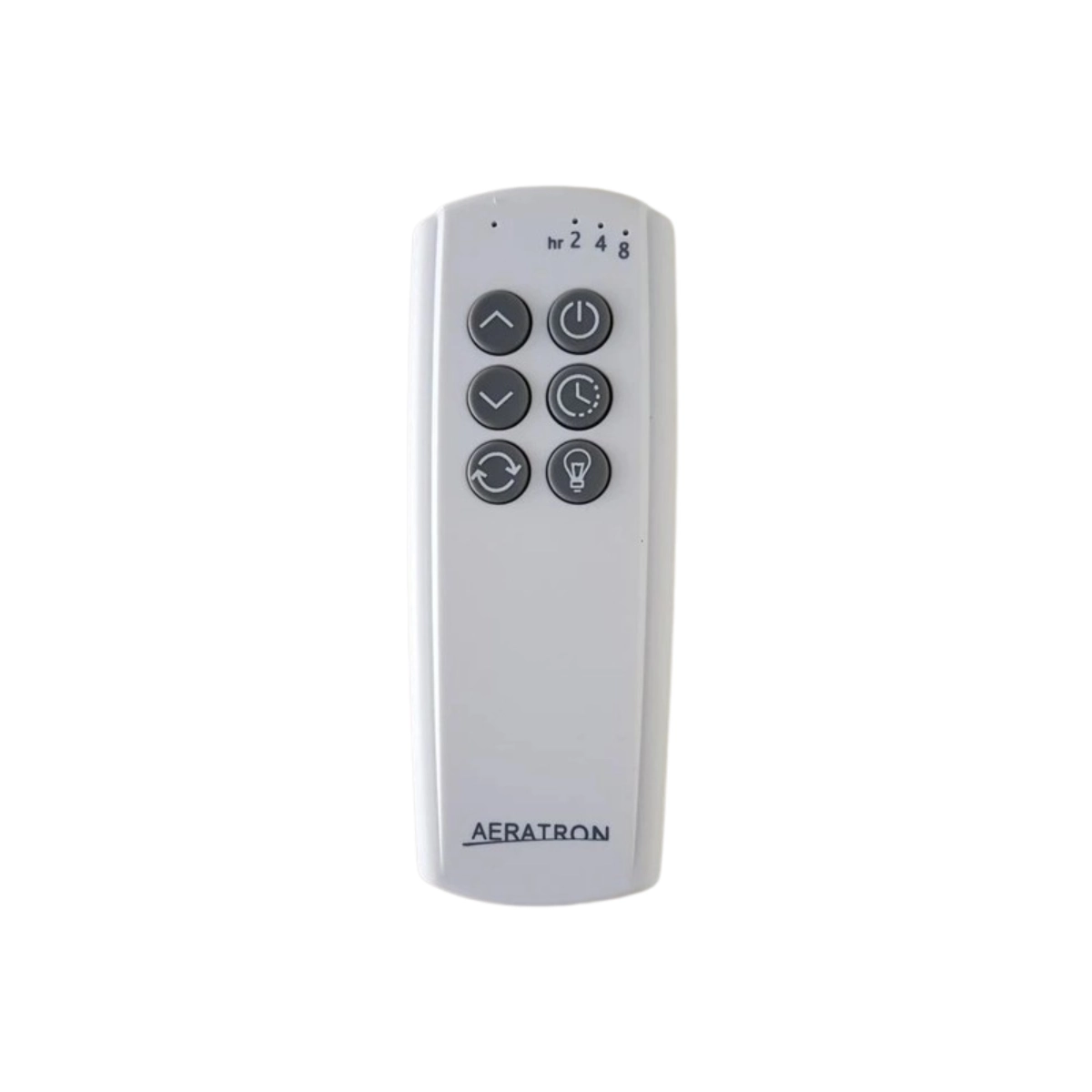

The included remote control provides effortless operation with six speed settings and a reverse function for year-round comfort.
| Installation Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 126cm (50″) |
| Blade Pitch | Not Tested |
| Motor Type | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 275mm |
| Angled Ceilings? | Suitable for angled ceilings up to 40 Degrees |
| Light | Not Included |
Aeratron FR3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 2.8 | 1,682 m3/hr |
| 2 | Not Tested | Not Tested | Not Tested |
| 3 | Not Tested | Not Tested | Not Tested |
| 4 | Not Tested | Not Tested | Not Tested |
| 5 | Not Tested | Not Tested | Not Tested |
| 6 | 180 | 12.8 | 5,010 m3/hr |
Powered by a super-efficient DC motor, this fan delivers quiet performance while consuming minimal power.
Raked / High Ceiling Installation
- If you are installing the fan on a flat, high ceiling and wish to bring the fan down with an extension rod. You require the Aeratron FR / AE+ Series Extension Rod Raked Kit (0°-15°)
- If you have a raked ceiling between 0 and 15 degrees. You require the Aeratron FR / AE+ Series Extension Rod Raked Kit (0°-15°)
- If you have a raked ceiling between 16 and 33 degrees. You require the Aeratron FR / AE+ Series Raked Extension Rod Kit (16°- 33°)
The raked extension rod ceiling kits are listed as accessories below. Please click on each item to read more about it.
