Aeratron FR3 DC Main Features

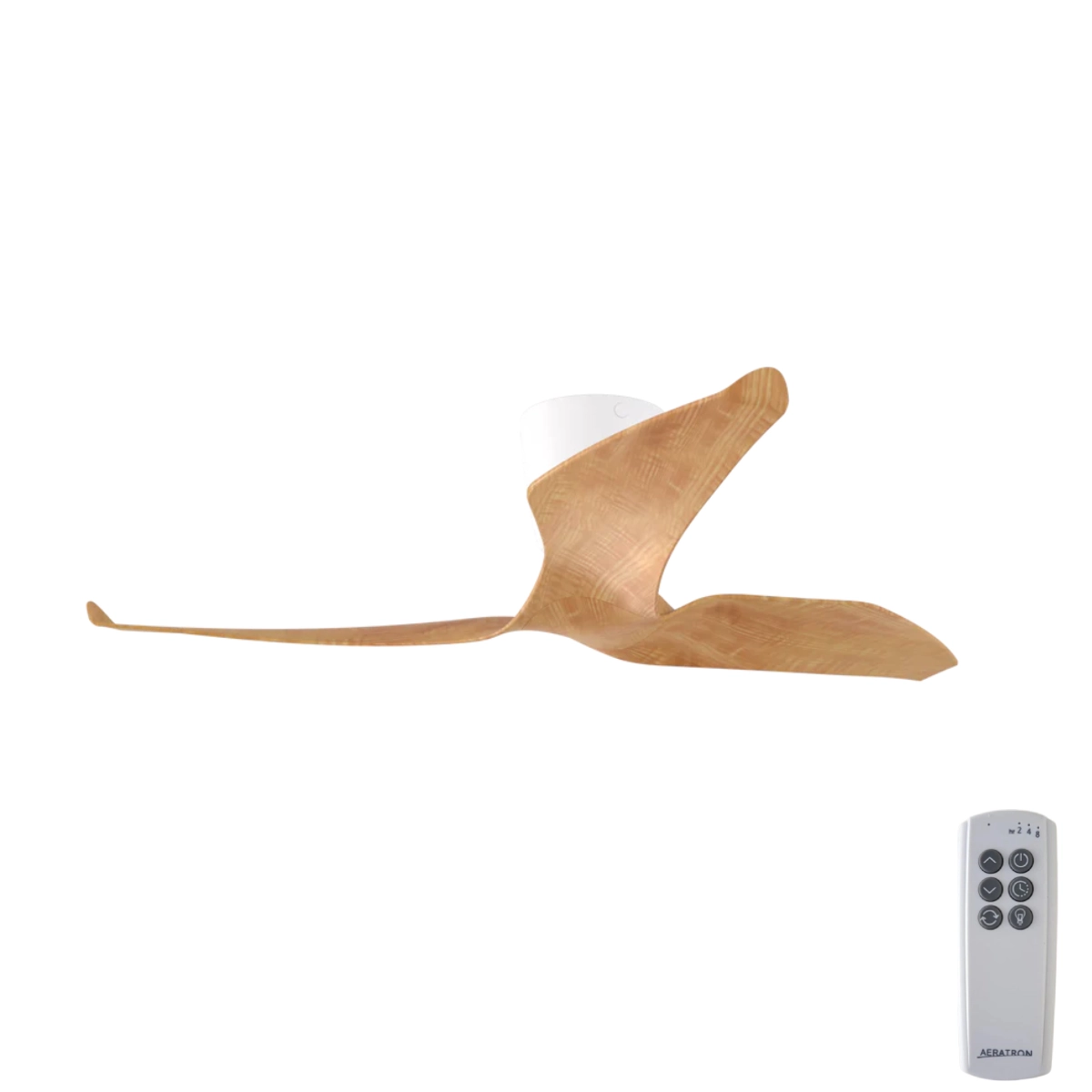

Designed for convenience, the included remote control lets you easily adjust between six speed settings and activate the reverse function, ensuring optimal airflow and comfort throughout every season.
| Installation Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 152cm (60″) |
| Blade Pitch | Not Tested |
| Motor Type | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 275mm |
| Angled Ceilings? | Suitable for angled ceilings up to 40 Degrees |
| Light | Not Included |
Aeratron FR3 Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 56 | 2.8 | 2,411 m3/hr |
| 2 | Not Tested | Not Tested | Not Tested |
| 3 | Not Tested | Not Tested | Not Tested |
| 4 | Not Tested | Not Tested | Not Tested |
| 5 | Not Tested | Not Tested | Not Tested |
| 6 | 152 | 18.6 | 5,935 m3/hr |
Powered by a highly efficient DC motor, this fan delivers quiet performance while using minimal energy.
Raked / High Ceiling Installation
- If you are installing the fan on a flat, high ceiling and wish to bring the fan down with an extension rod. You require the Aeratron FR / AE+ Series Extension Rod Raked Kit (0°-15°)
- If you have a raked ceiling between 0 and 15 degrees. You require the Aeratron FR / AE+ Series Extension Rod Raked Kit (0°-15°)
- If you have a raked ceiling between 16 and 33 degrees. You require the Aeratron FR / AE+ Series Raked Extension Rod Kit (16°- 33°)
The raked extension rod ceiling kits are listed as accessories below. Please click on each item to read more about it.
