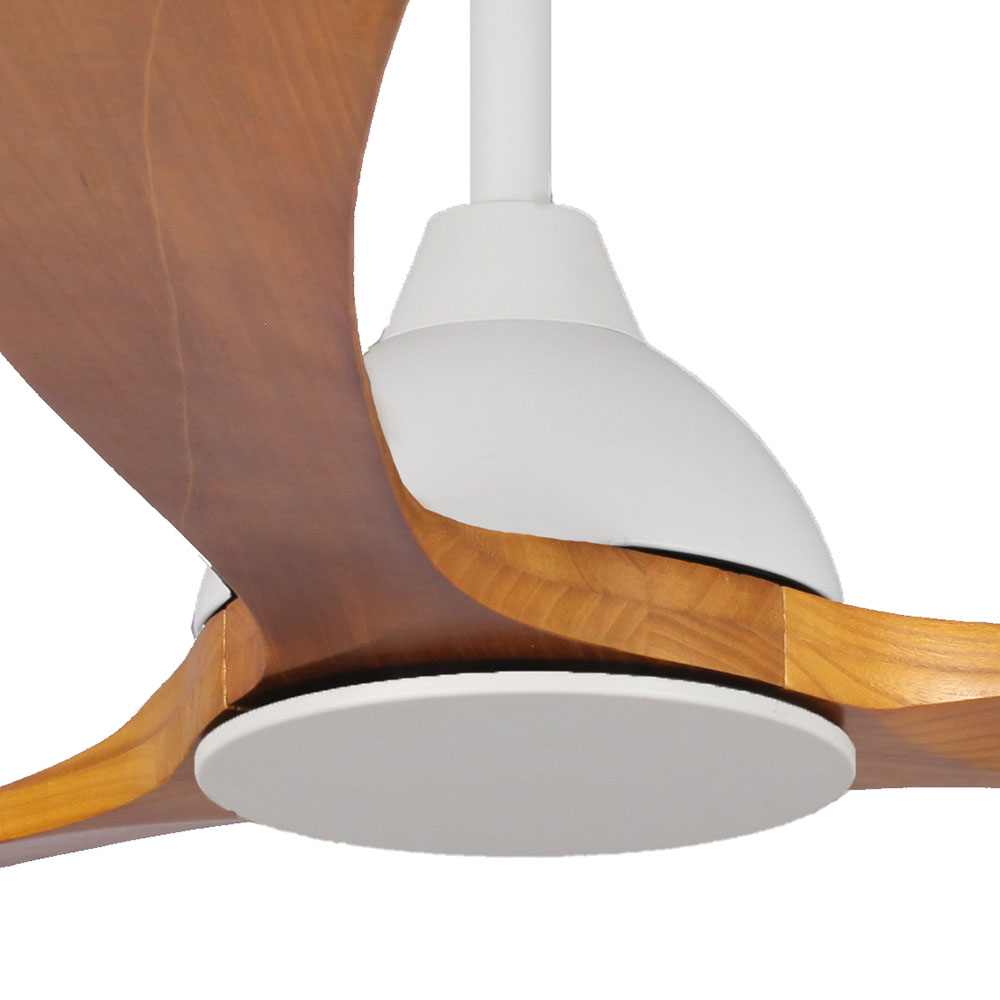

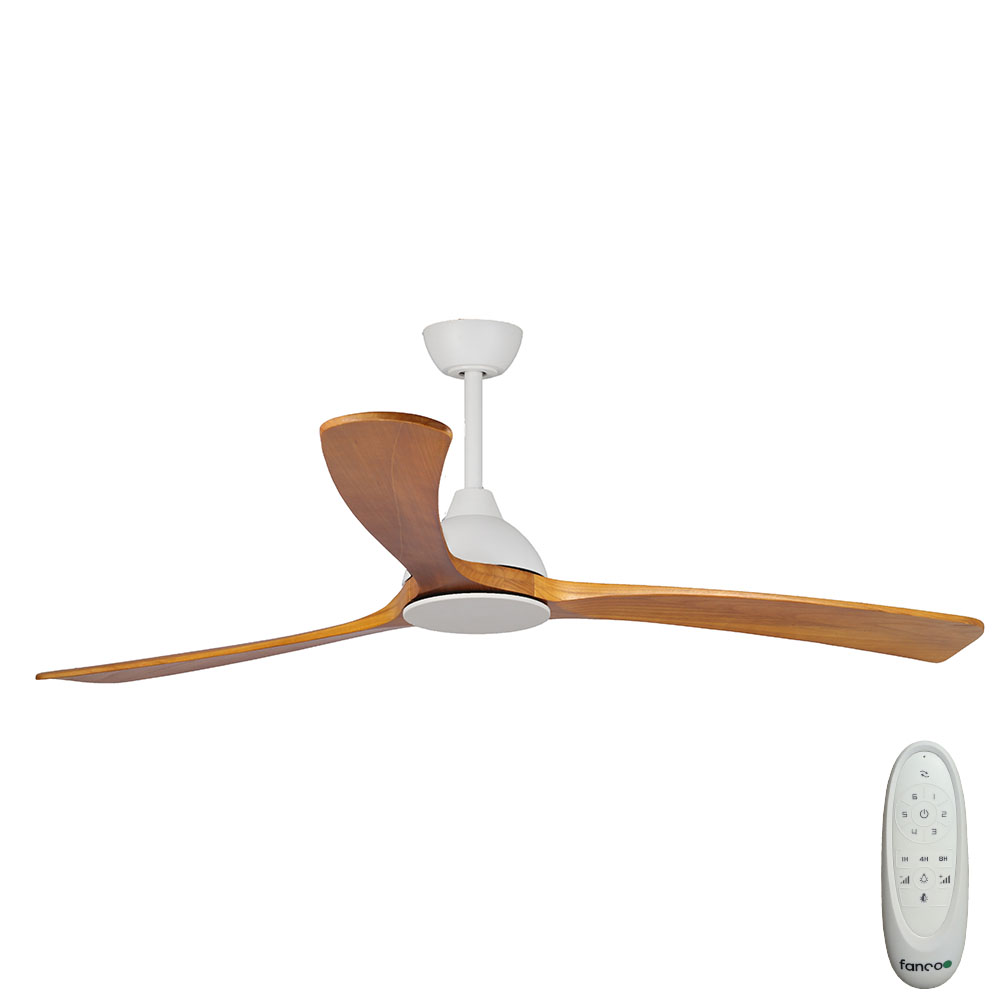

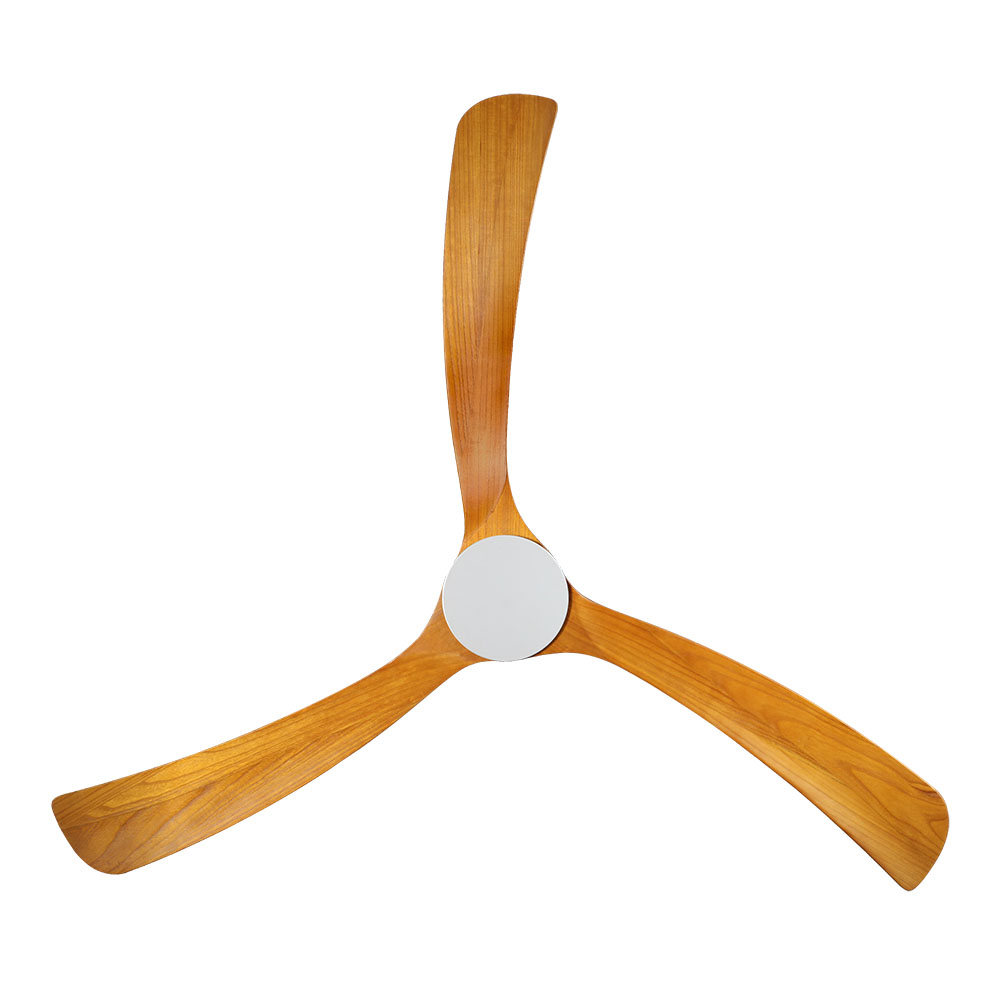

Fanco Sanctuary DC Main Features
Crafted with anti-corrosive metal components and sealed timber blades, the Fanco Sanctuary combines lasting durability with refined style, making it ideal for outdoor and coastal environments.
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Timber |
| Overall Diameter | 178cm (70″) |
| Blade Pitch | 10 Degrees |
| Motor Type | DC motor |
| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 322mm (with 125mm rod) / 447mm (with 250mm) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light | Not Included |
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 55 | 5.4 | 3,150 m3/hr |
| 2 | 86 | 10.3 | 5,230 m3/hr |
| 3 | 103 | 15 | 6,879 m3/hr |
| 4 | 115 | 20 | 8,520 m3/hr |
| 5 | 128 | 26 | 9,053 m3/hr |
| 6 | 147 | 38 | 11,176 m3/hr |
The Fanco Sanctuary provides year-round comfort with a reversible function that cools your space during summer and circulates warmth in winterall effortlessly controlled via the included remote. Its advanced DC motor delivers a strong airflow of 11,176 m³/hr while consuming only 38W at maximum speed.
**Fan & components must be installed by Qualified Persons**
**Please Note: For outdoor installations, the Sanctuary is to be a minimum of 1.5m from the edge of the roof /eaves under all circumstances.
**Please ensure that a 70cm distance is kept from the tip of the blades to the walls/edge of the roof/ceiling beams.
Sanctuary disclaimer: This model comes with x2 down-rods in the box. A 125mm rod and 250mm rod. Because the Sanctuary has a longer than average ceiling to blade drop of (322mm drop with 125mm rod/447mm drop with 250mm rod), and a wider than average blade span, we don’t recommend installing it on ceilings under 2.7m high. This fan should be positioned to allow at least a 70cm clearance between the tip of the blades and the walls, edge of roof or ceiling beams. Please note that for outdoor installations, the fan must be installed at a minimum of 1.5 metres from the edge of the roof.
