Fanco Sanctuary DC Main Features
The Fanco Sanctuary is constructed with anti-corrosive metal and sealed timber blades, offering a perfect balance of durability and style, ideal for outdoor and coastal areas. Timer settings with 1H / 4H / 8H for custom control.
Note: Solid timber is a natural material, so each set of blades may vary slightly. This can result in minor differences in performance specifications.
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Timber |
| Overall Diameter | 178cm (70″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC motor |

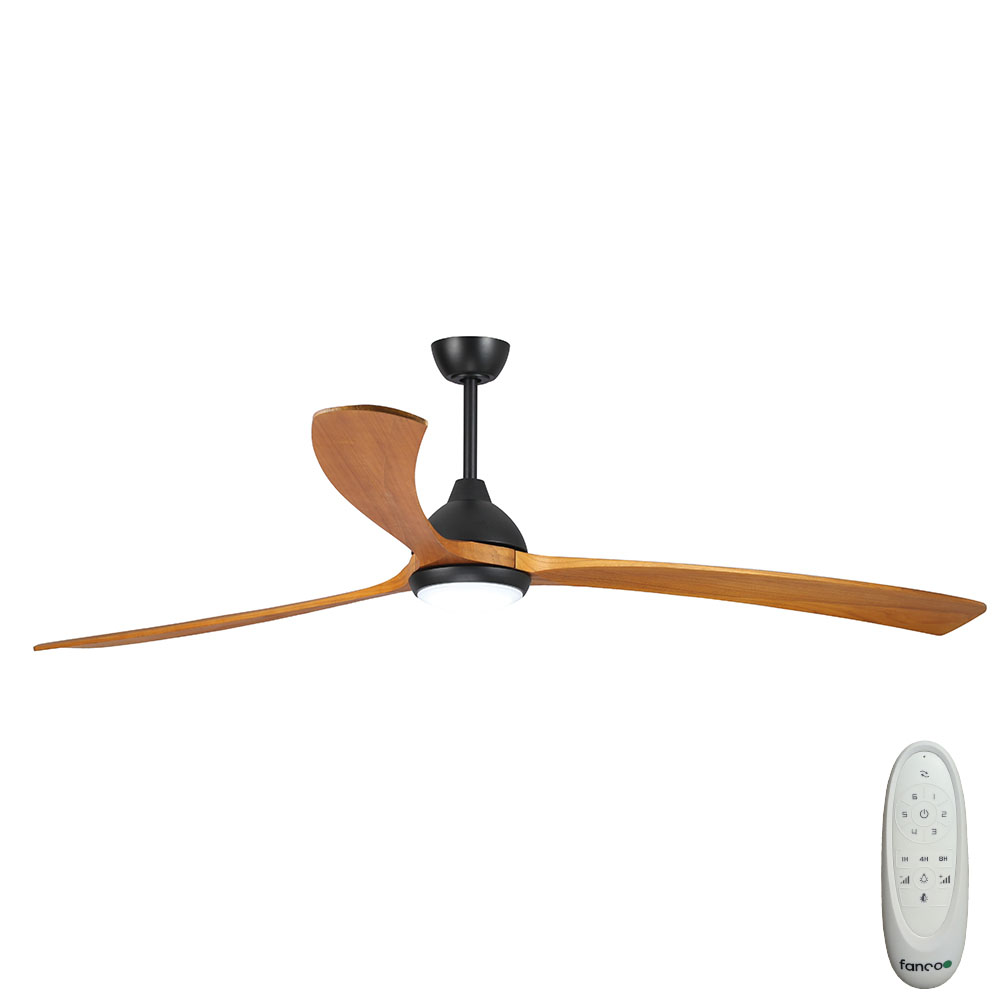

| Operation | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 307mm (375mm to base of light) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light | Included |
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 57 | 4 | 4,972 m3/hr |
| 2 | 79 | 7.3 | 6,230 m3/hr |
| 3 | 93 | 10.7 | 7,727 m3/hr |
| 4 | 112 | 17.5 | 9,100 m3/hr |
| 5 | 130 | 27.4 | 10,318 m3/hr |
| 6 | 148 | 39.7 | 11,371 m3/hr |
The Fanco Sanctuary ensures comfort across all seasons with its remote-controlled reversible function, keeping you cool in summer and warm in winter. Despite producing an impressive 11,371 m3/hr of airflow, its efficient DC motor draws only 39.7W at the highest setting.

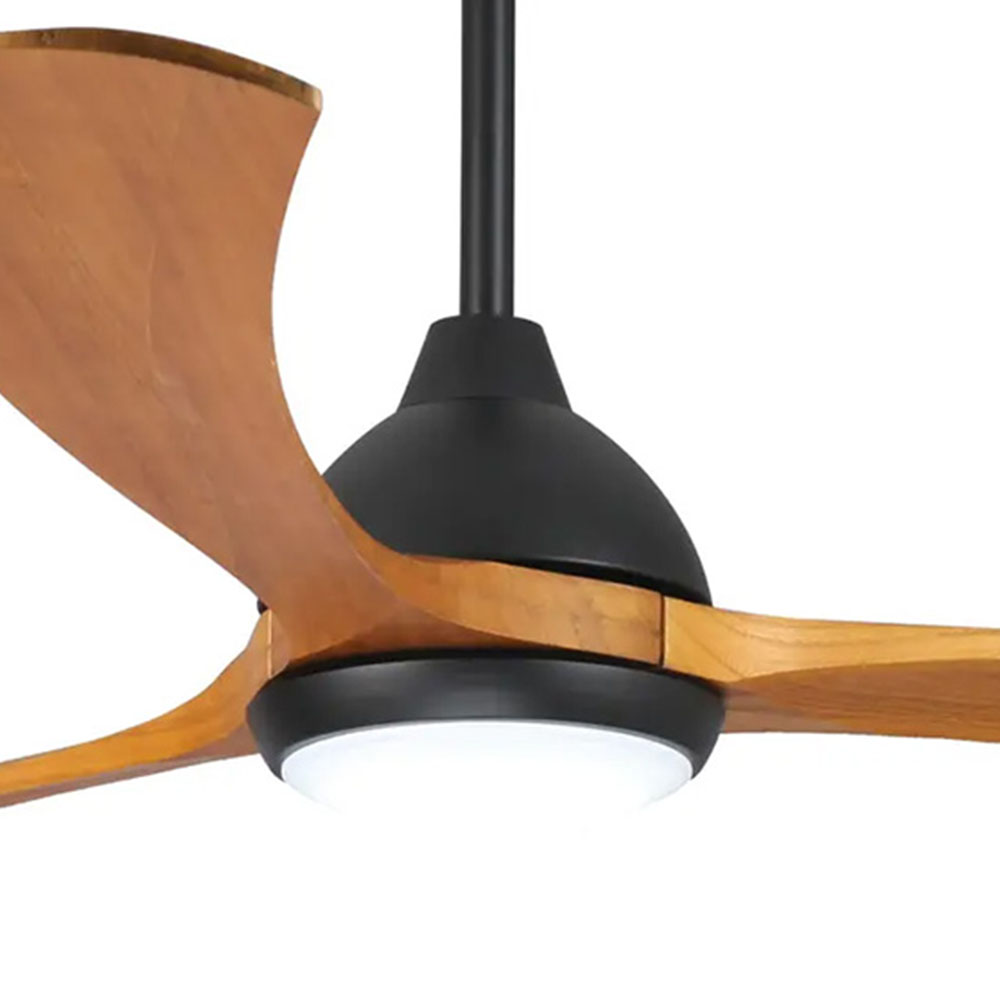

About the Fanco Sanctuary Light
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 2102lm, 1959lm, or 1956lm |
| Light Temperature | 3000K, 4000K or 6000K |
| Dimmable | Yes |
This light kit features CCT Technology. This means that you are able to select your preferred light temperature.
